Tech specs

• Frameset

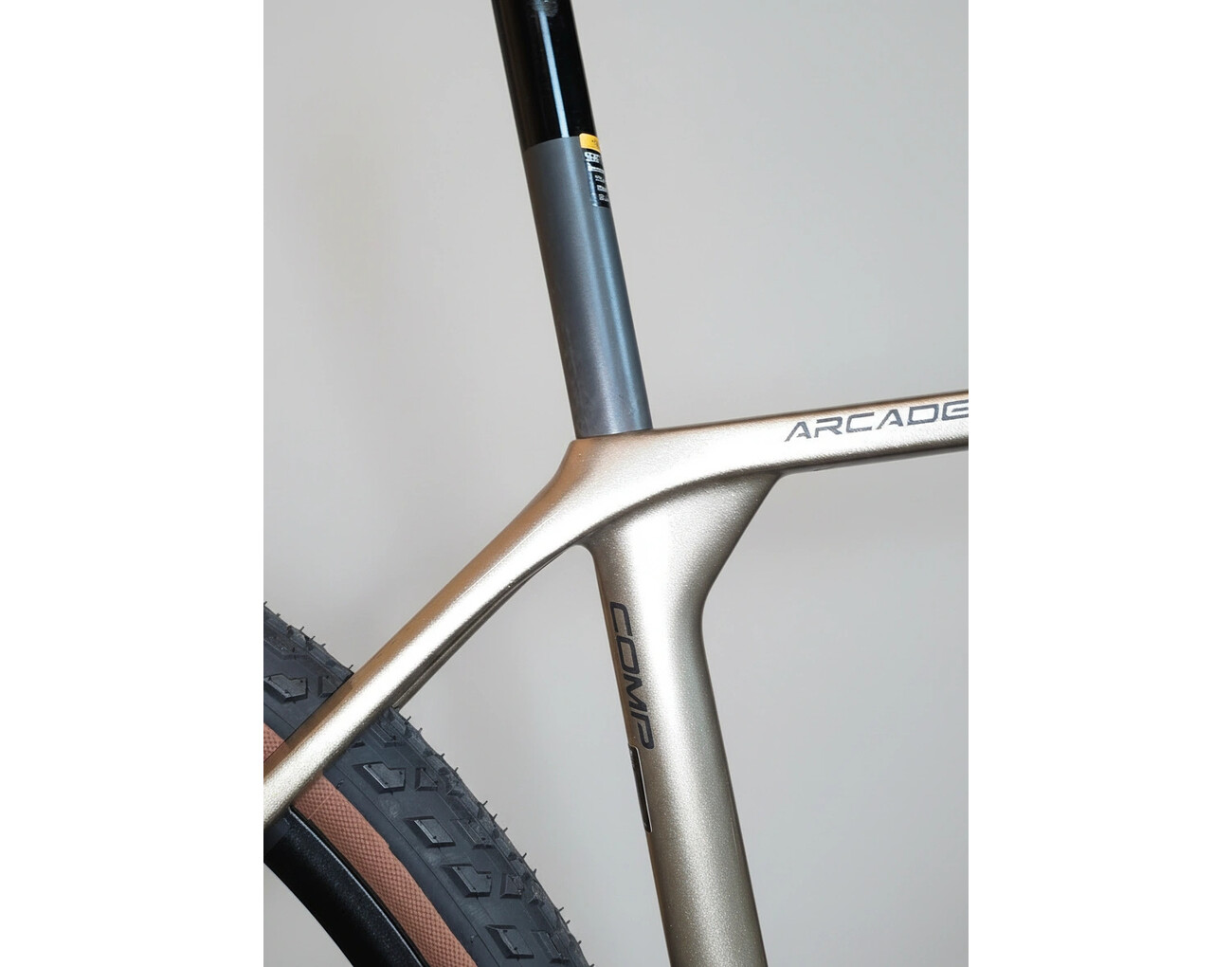

  1. Frame

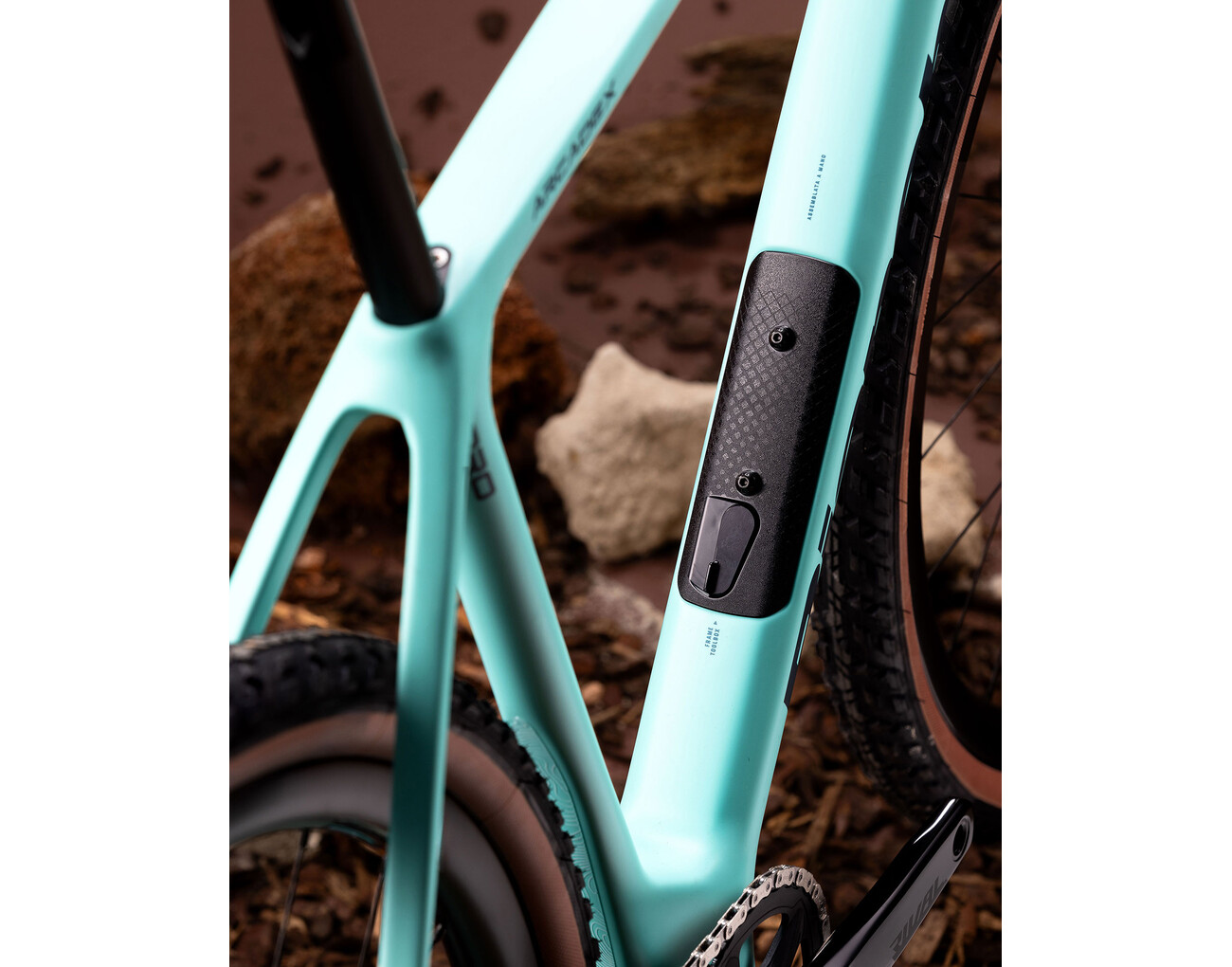

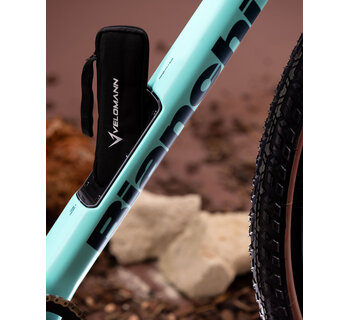

     Bianchi Arcadex, Carbon, Flat mount disc, PressFit 86.5x41 mm, Thru axle, OLD: 142 mm, Rear derailleur: Sram UDH hanger type, Tire clearance: ETRTO 622-50 sizes XS-SM-MD-LG-XL

  2. Fork

     Bianchi Arcadex, Carbon, flat mount disc brake, thru axle 12x100 mm

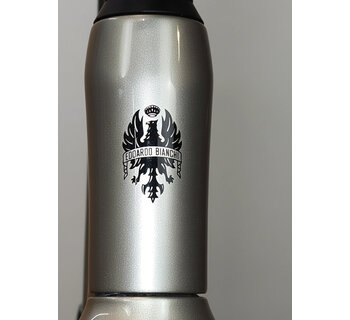

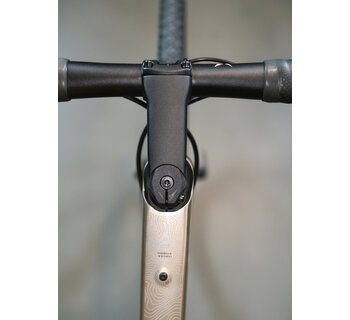

  3. Headset

     Acros for internal cable routing

• Drivetrain

  1. Shifters

     Shimano GRX, shifter lever ST-RX610, caliper BRRX400

  2. Rear Derailleur

     Shimano GRX, RD-RX822, 12sp

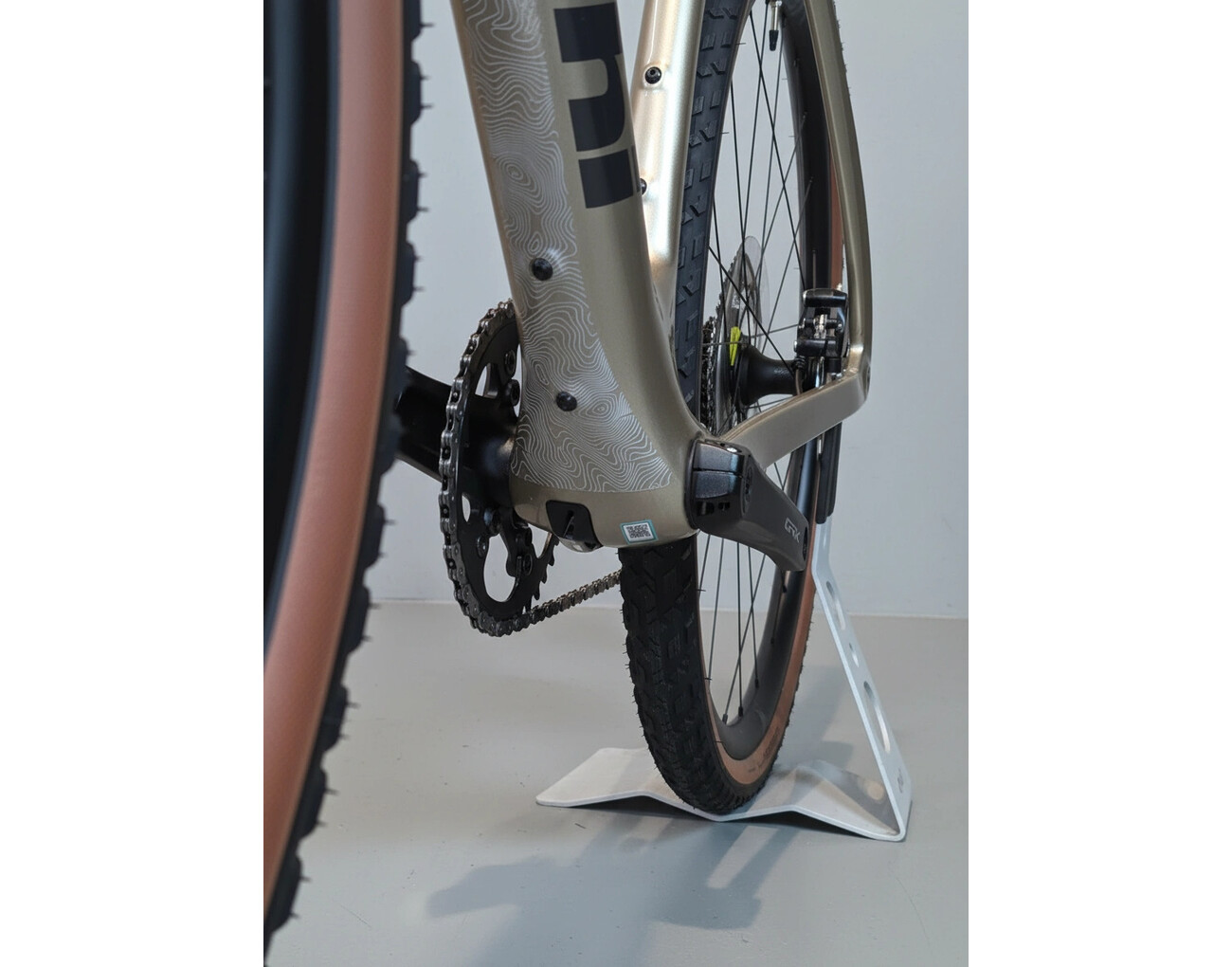

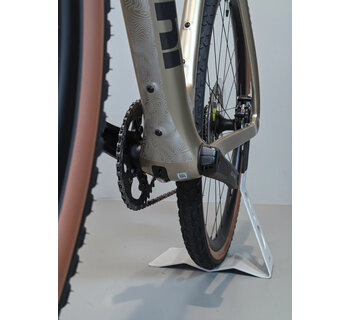

  3. Crankset

     Shimano GRX, FC-RX610, 40T Crank length: 170 mm (XS-SM); 172.5 mm (MD-LG); 175 mm (XL)

  4. Bottom Bracket

     Shimano SM-BB72-41B, press fit type for road

  5. Chain

     Shimano 105, CN-M7100

  6. Cassette

     Shimano SLX, CS-M7100, 10-51T, 10-12-14-16-18-21-24-28-33-39-45-51T

• Brakes

  1. Brakes

     Shimano BR-RX410 Hydraulic disc brake

  2. Brake Levers

     Included in the shifter

  3. Rotor

     Shimano SM-RT70 Center Lock with Ice Tech, 160 mm

• Wheels

  1. Wheels

     Velomann V24G, Aluminium rim, profile height 24 mm, 700x24c, 24h, HG11 body

  2. Tire

     Pirelli Cinturato Gravel M, 700x45, 120 TPI
