| Material | Carbon |
|---|---|

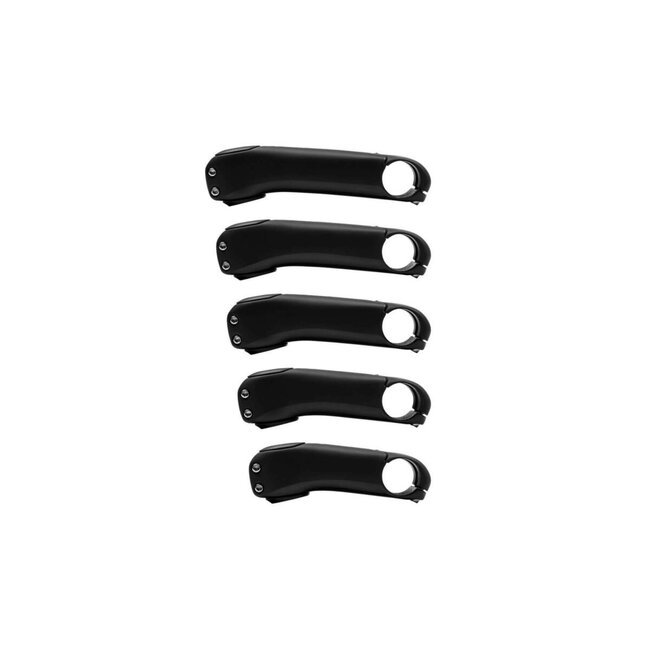

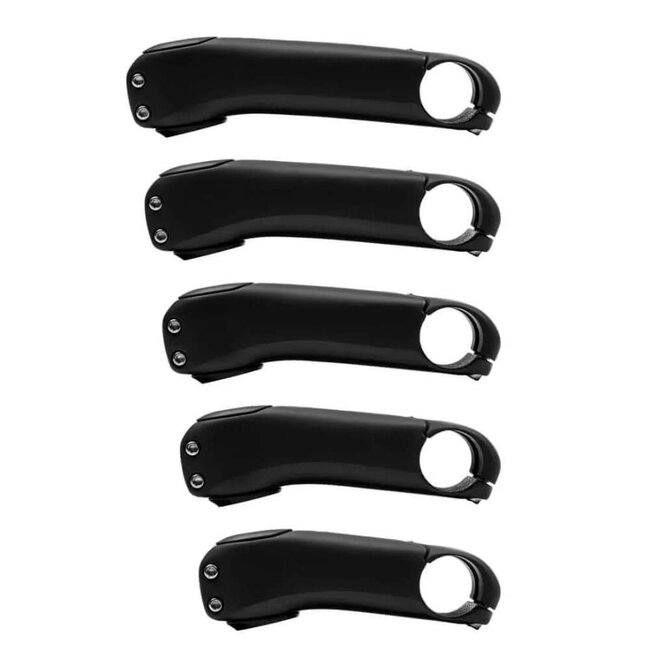

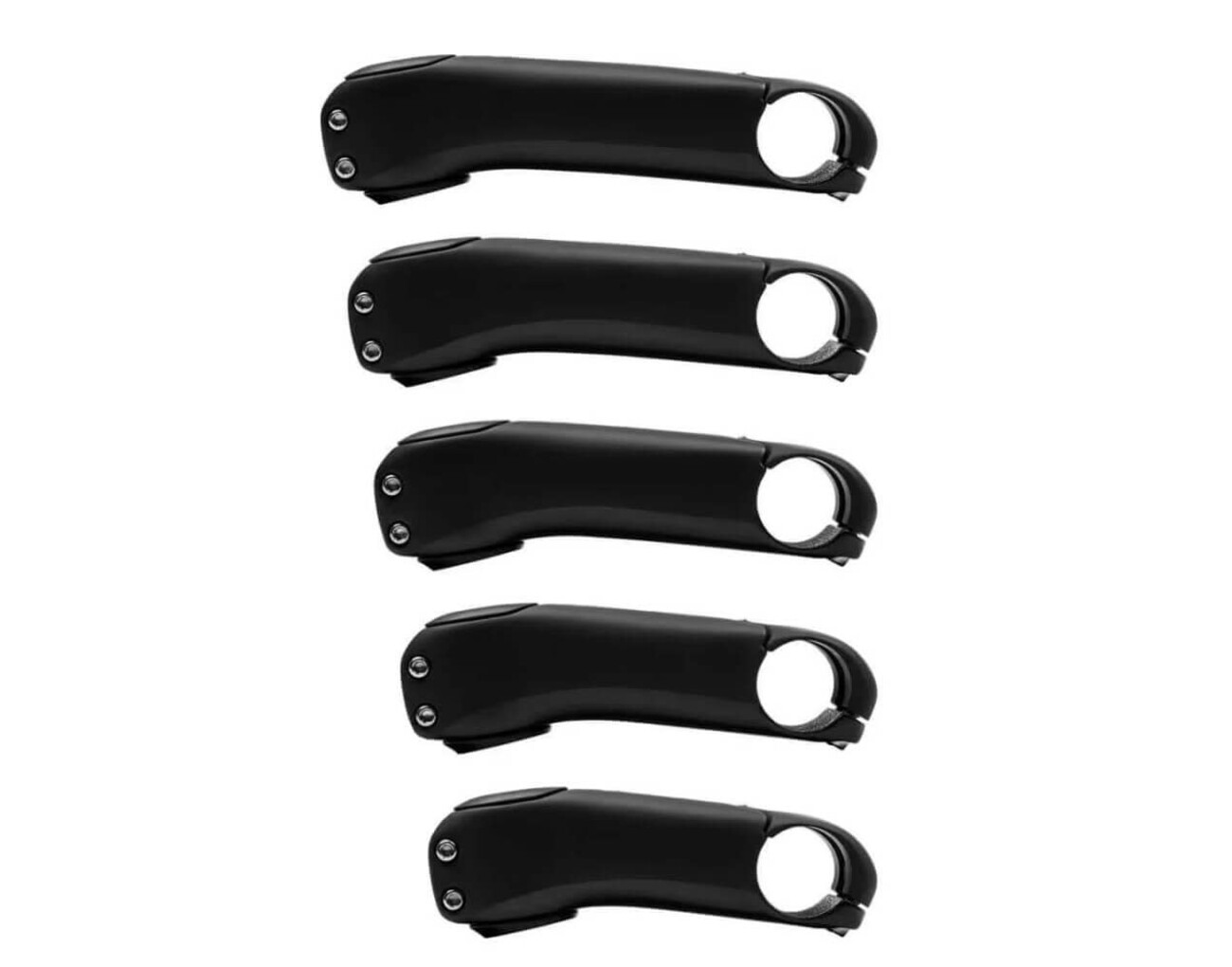

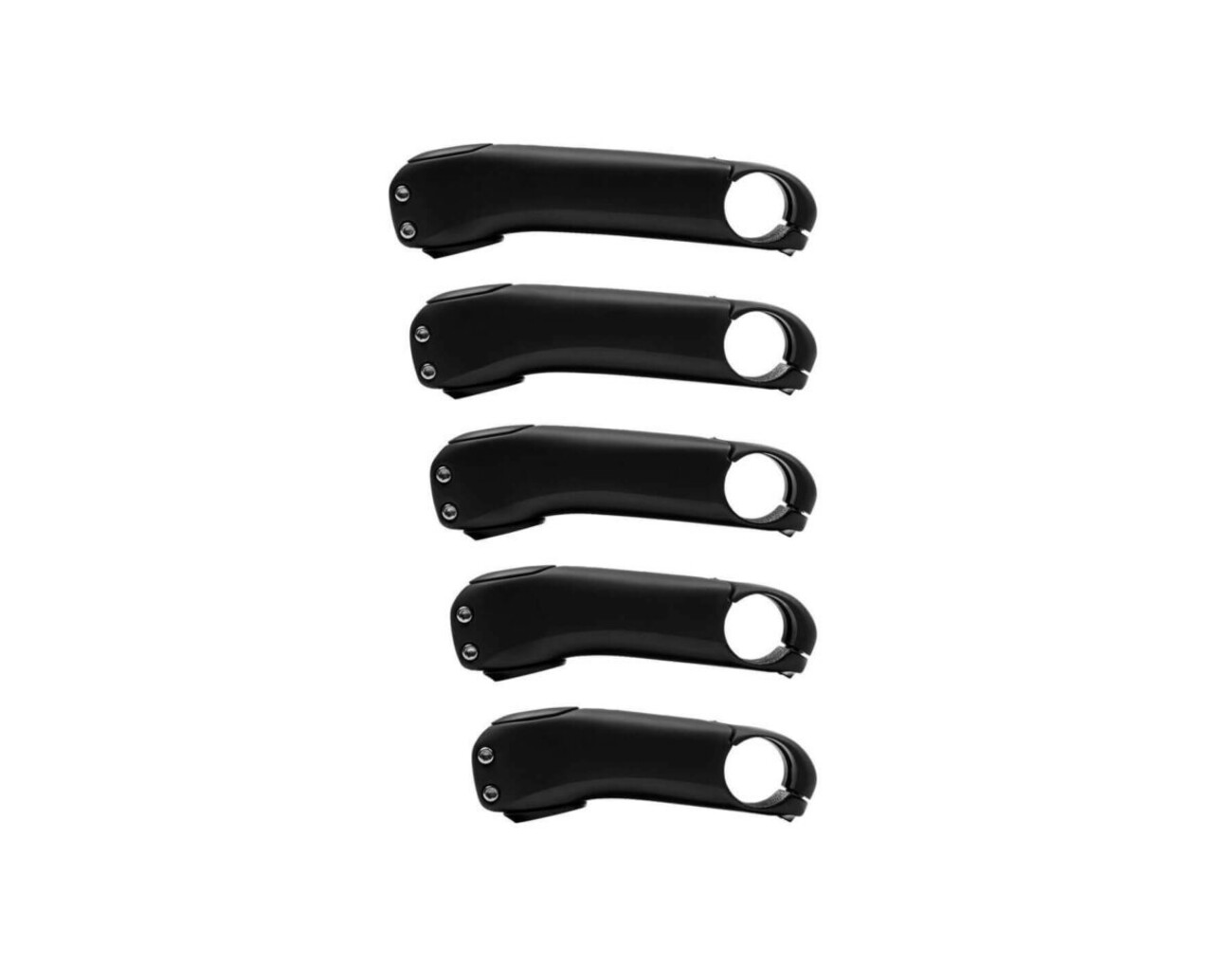

| Length | 90, 100, 110, 120, 130, 140mm (+/-2.5mm with -12° shim) |
| Weight | 165, 170, 175, 180, 185, 190 grams |
| Rise | -12° fixed, -17°/-7° with angle shim |
| Clamp Diameter | 31.8 mm |
| Steer Tube Clamp Diameter | 1 1/8" |
| Faceplate Material | Aluminum |
| Hardware Material | Titanium |
| Stack Height | 42.5mm with length shim / 45.5mm with angle shim |

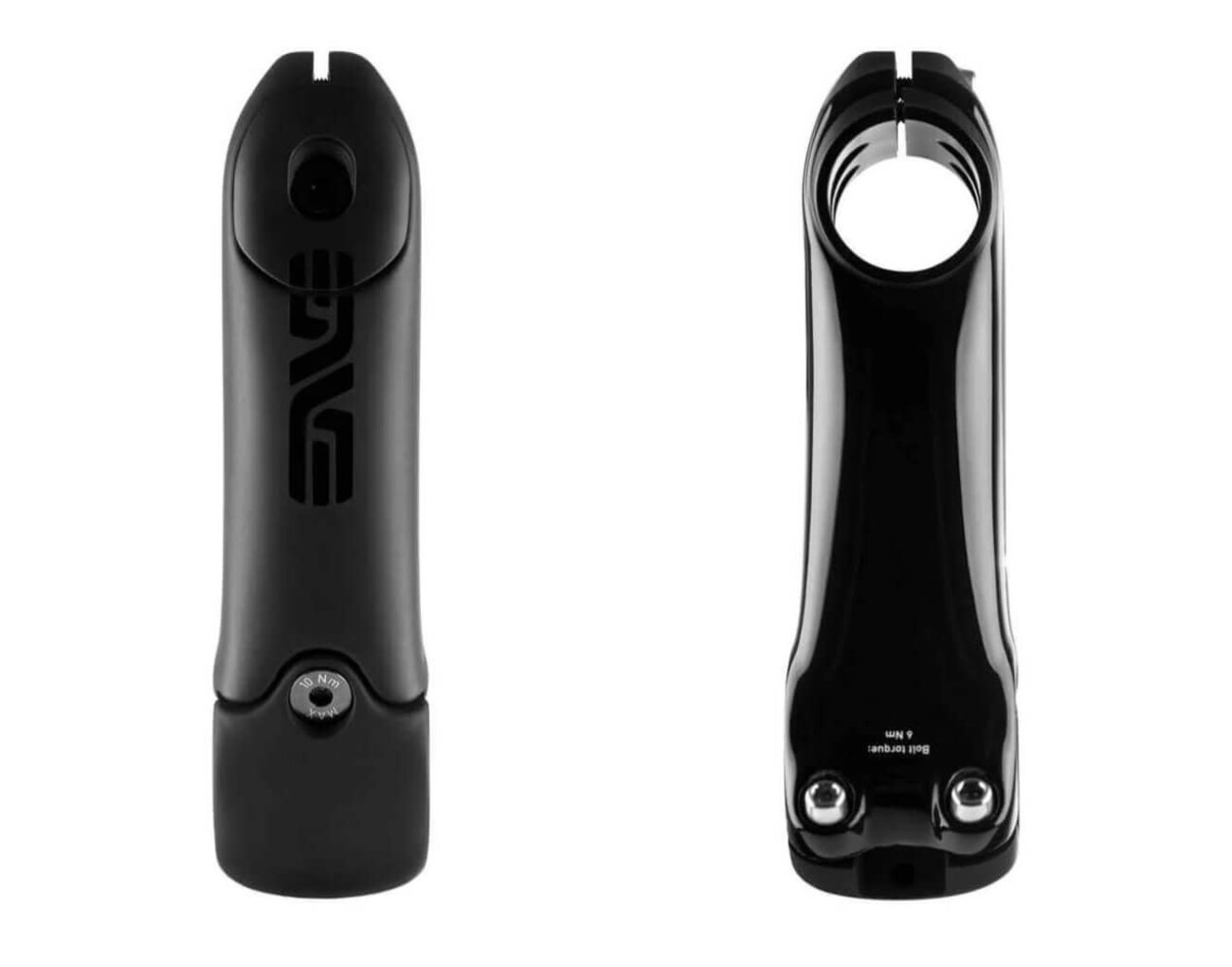

| Torque Spec: Face Plate | Upper Bolt: 10Nm, Lower Bolt: 6Nm |
| Torque Spec: Steer Tube | 5.5Nm |
| Product SKU | 90mm: 300-1020-006 100mm: 300-1020-001 110mm: 300-1020-002 120mm: 300-1020-003 130mm: 300-1020-004 140mm: 300-1020-005 |
