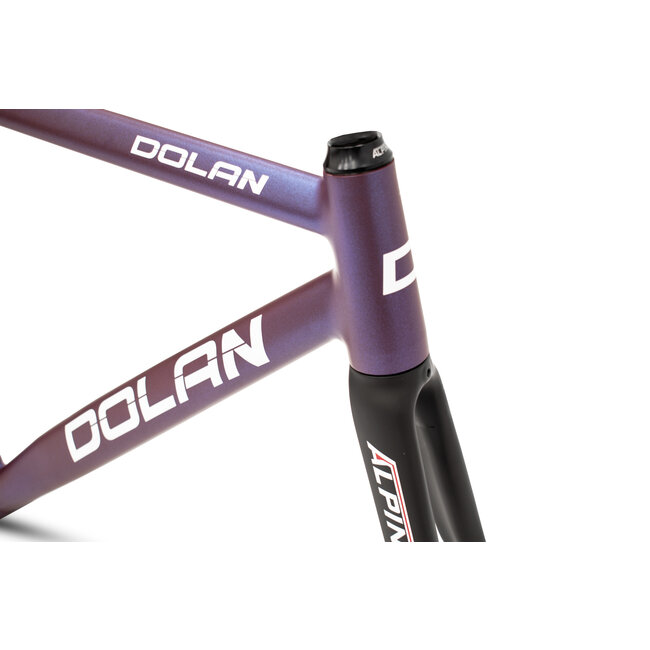

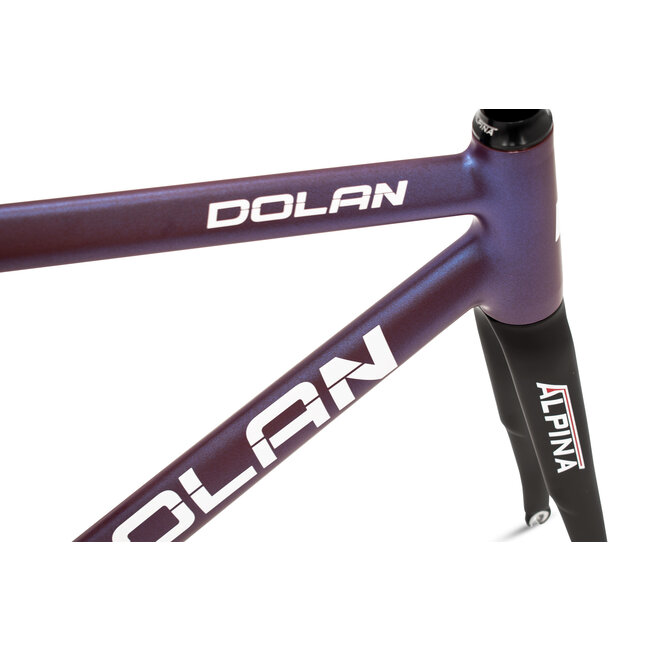

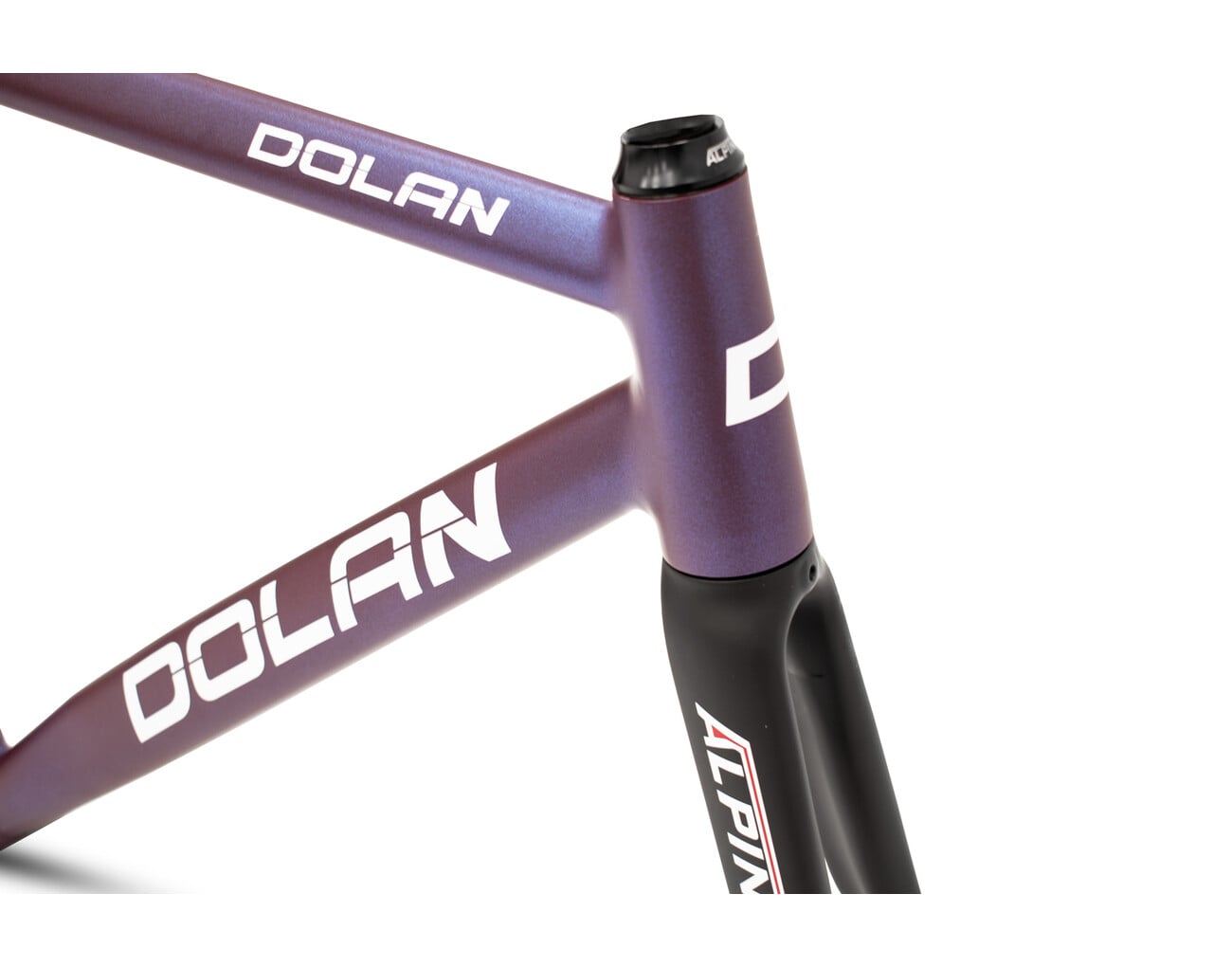

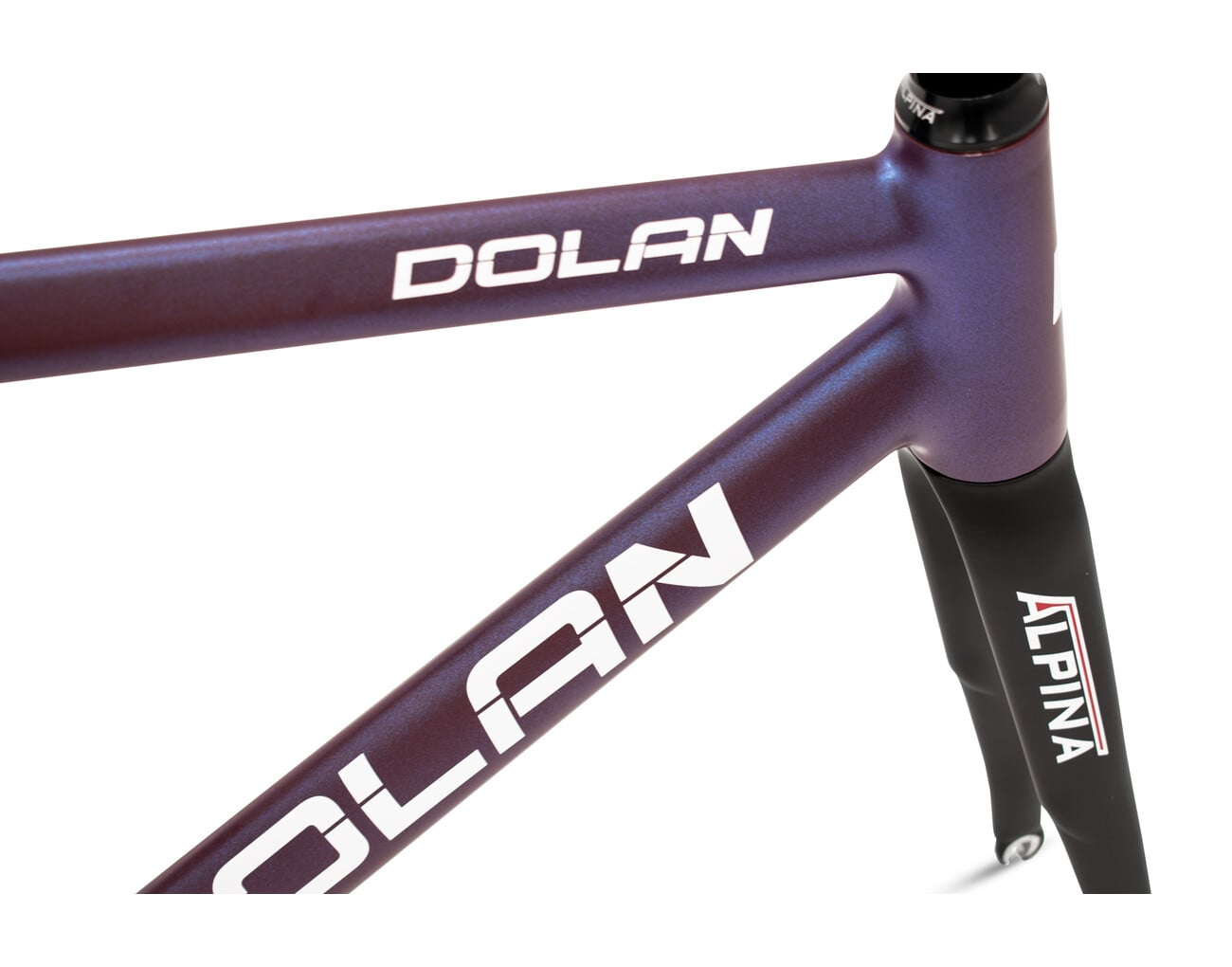

tapered head tube
Tapered head tubes have become a standard in the bicycle industry, especially for high-performance road bikes, due to their advantages in strength, stiffness, and compatibility.
7005 TRIPLE BUTTED FRAME
Engineered for supreme strength all in a minimal weight design that won’t hold you back when it comes to cranking out the big watts.
SLOPING GEOMETRY
For optimal stiffness leading to maximum power transfer to the track when it really matters.
OVERSIZED DOWN TUBE
With serious watts comes the need for a frame engineered for strength under the maximum load of the most powerful riders in the world.
SMOOTH WELDS
For improved cosmetics and a sleek aero look and feel.

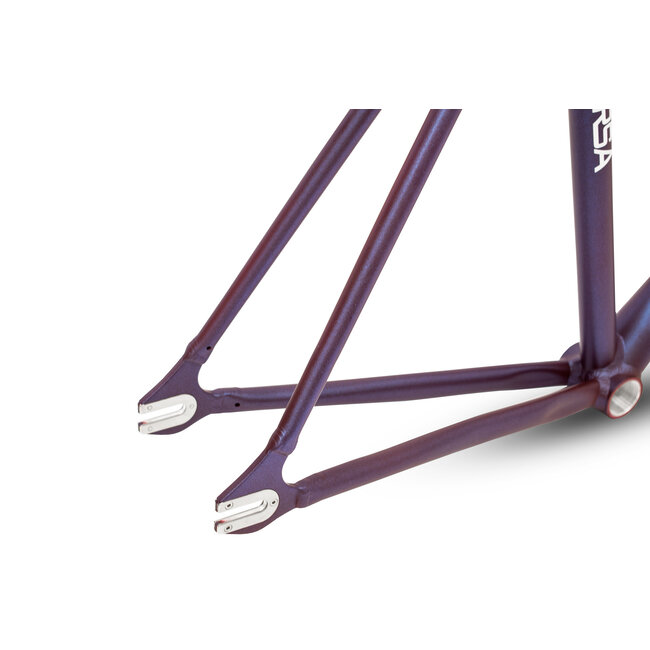

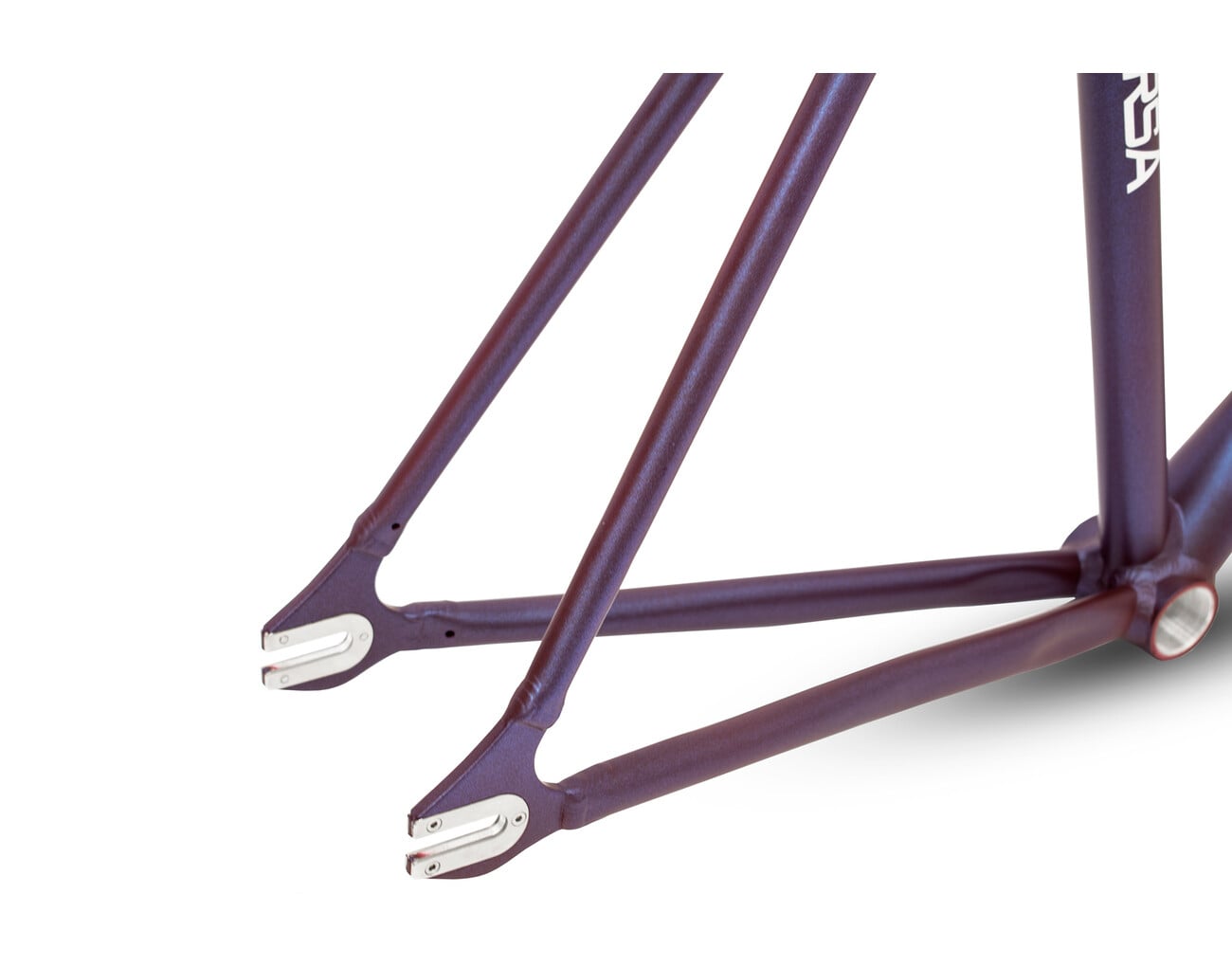

Double-sided dropouts
enhance a bicycle’s versatility and adaptability, making them a valuable feature for various riding styles and conditions.
Geometry:
| Size |
45cm |
50cm |
52cm |
54cm |
56cm |
58cm |
60cm |
| Head Angle |
71.0 |
73.0 |
73.0 |
74.0 |
75.0 |
75.0 |
75.0 |
| Head Tube Length (mm) |
95 |
105 |
120 |
140 |
160 |
180 |
200 |
| Effective Top Tube Horizontal (mm) |
498 |
525.7 |
535 |
547.2 |
555 |
570 |
608.8 |
| Seat Angle |
76.0 |
75.0 |
75.0 |
75.0 |
74.0 |
74.0 |
74.0 |
| Seat Tube Length Center To Top (mm) |
450 |
500 |
520 |
540 |
560 |
580 |
600 |
| Stack (mm) |
487.5 |
503 |
516.9 |
539.5 |
561.3 |
580.6 |
599.9 |
| Reach (mm) |
384.2 |
396 |
400.8 |
408 |
411.6 |
412.8 |
444.9 |
