Tech specs

• Frameset

  1. Frame

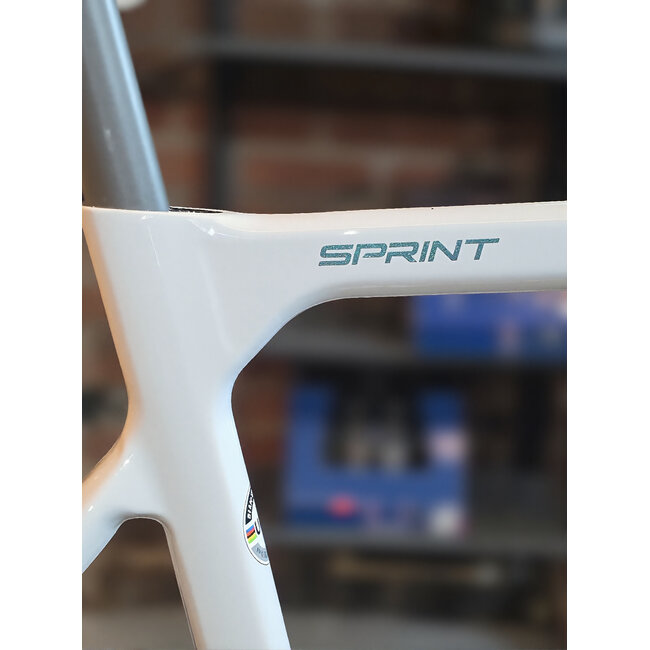

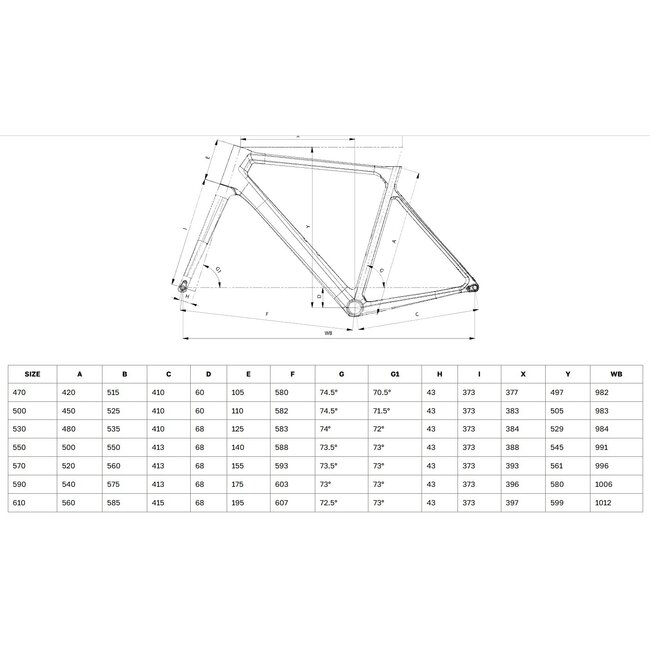

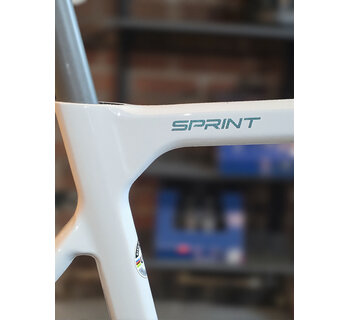

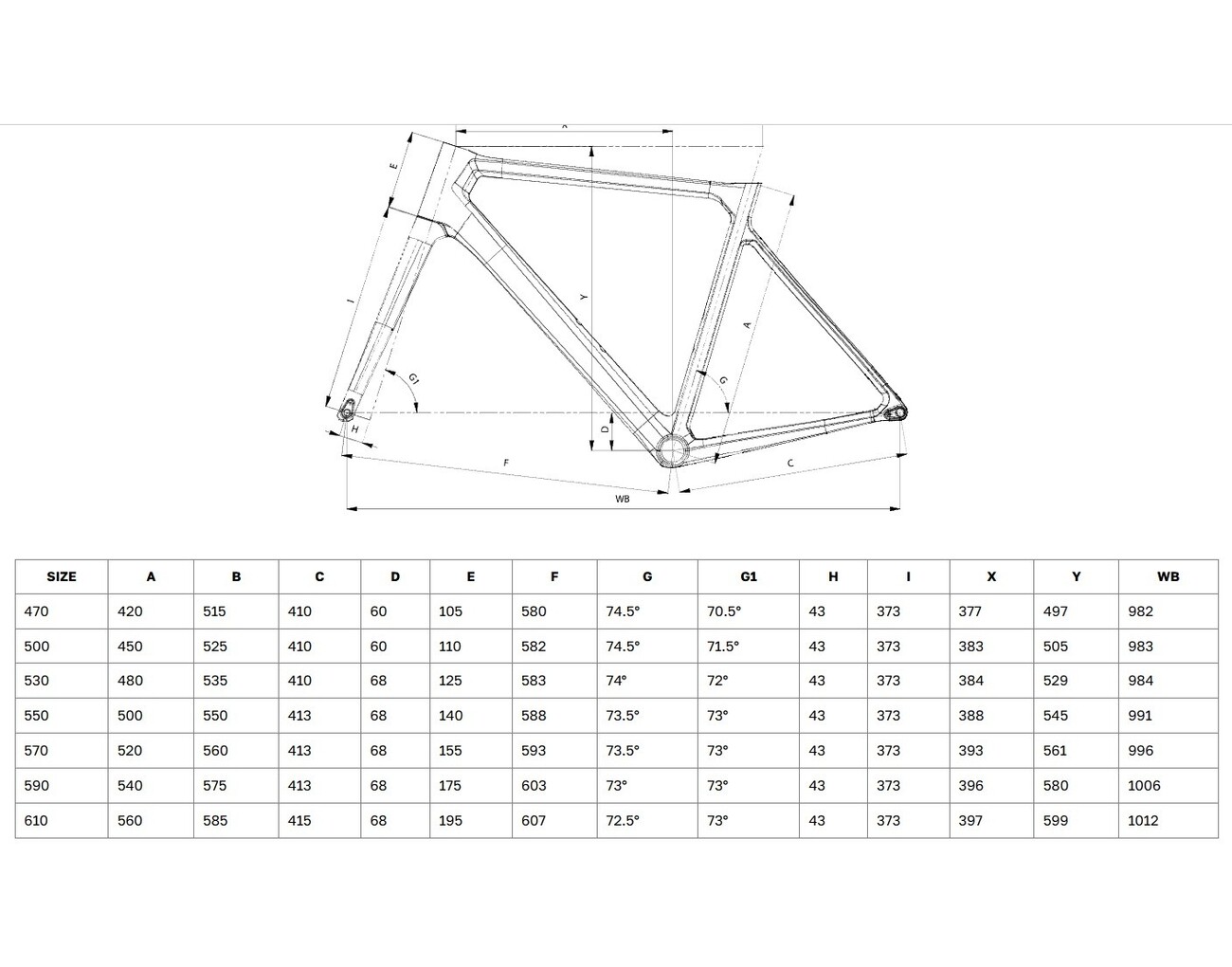

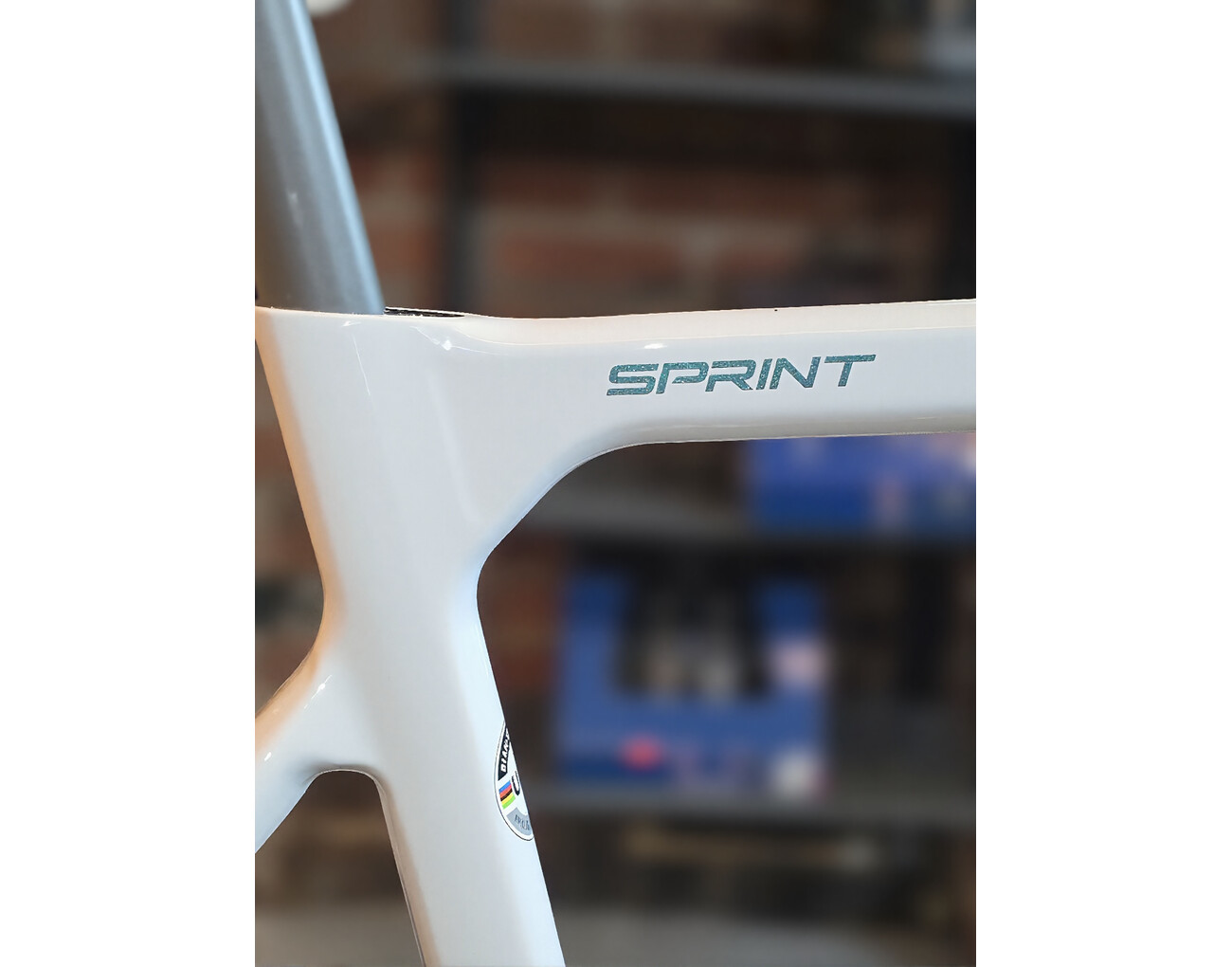

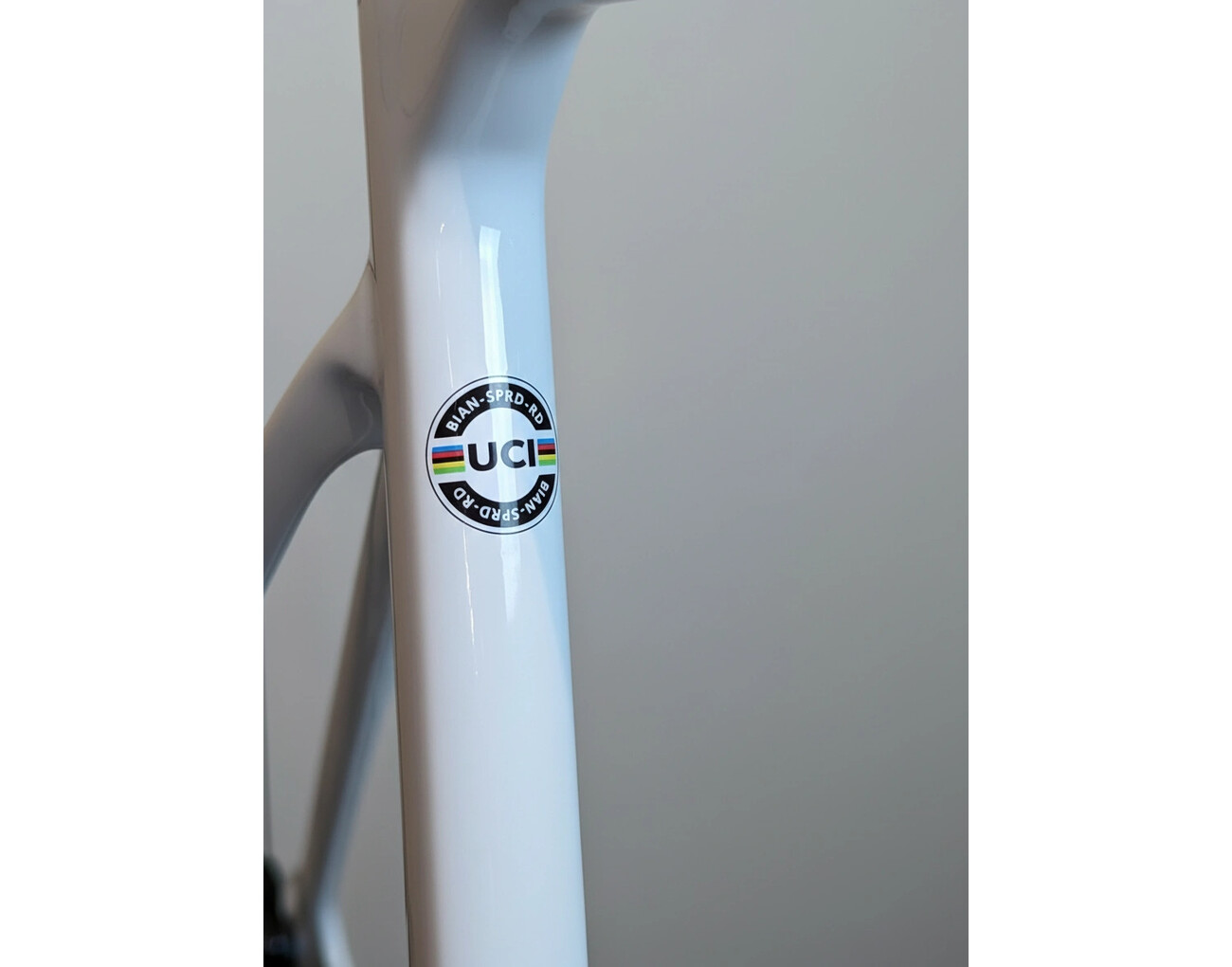

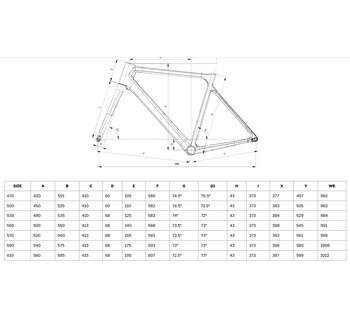

     Sprint carbon monocoque, mechanical/electronic, BB-PressFit 86,5x41, head tube 1.4"-1.5", integrated seat clamp, full carbon dropout, Disc brake flat mount, thru axle 12 x 142 sizes 47-50-53-55-57-59-61cm

  2. Fork

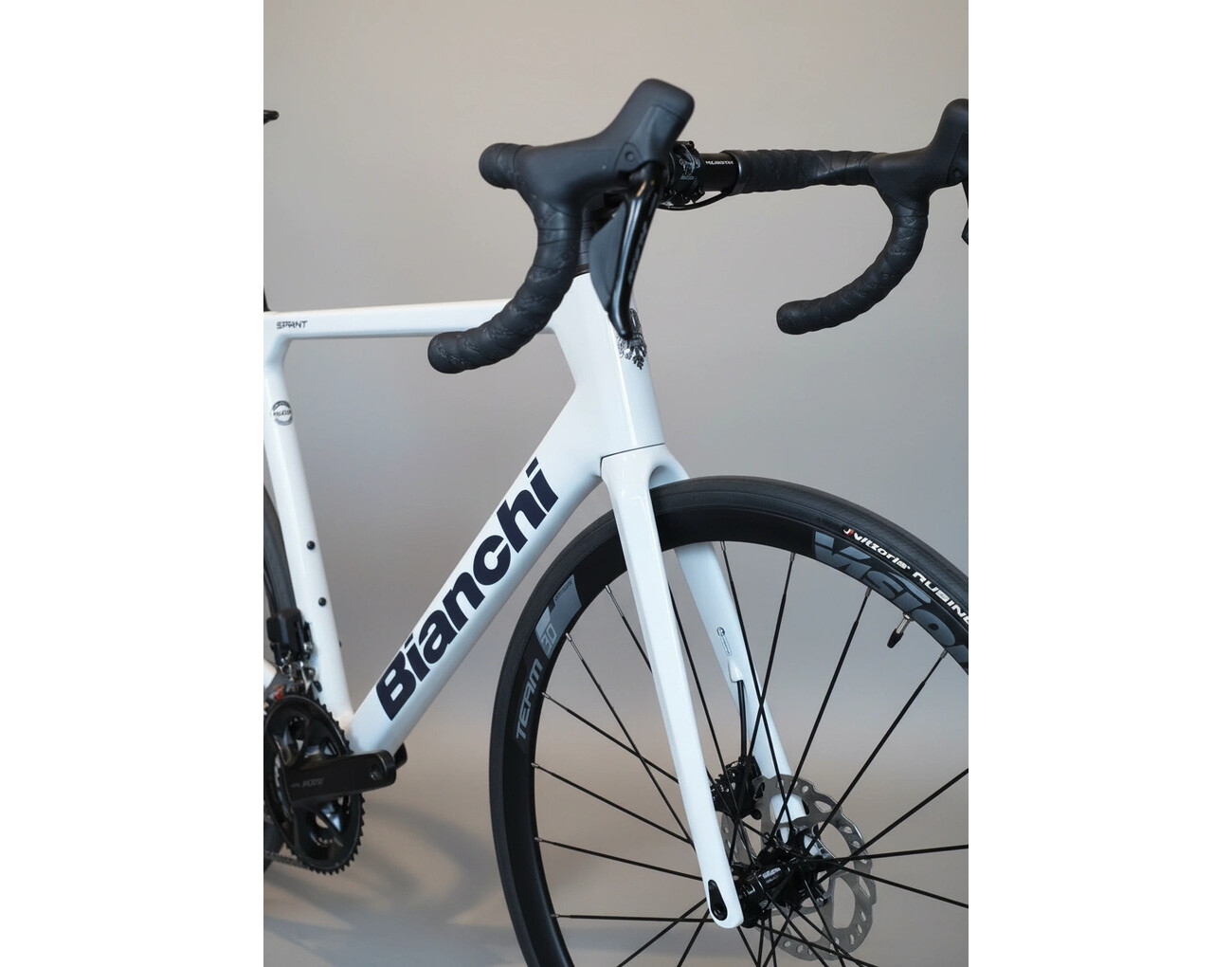

     Full Carbon Aero Road 1.4">1.5" integrated head , Disc brake flat mount, thru axle 12x100

  3. Headset

     ACROS & FSA, for internal cable routing

• Drivetrain

  1. Shifters

     Shimano 105 Di2, RD-R7150 12-speed

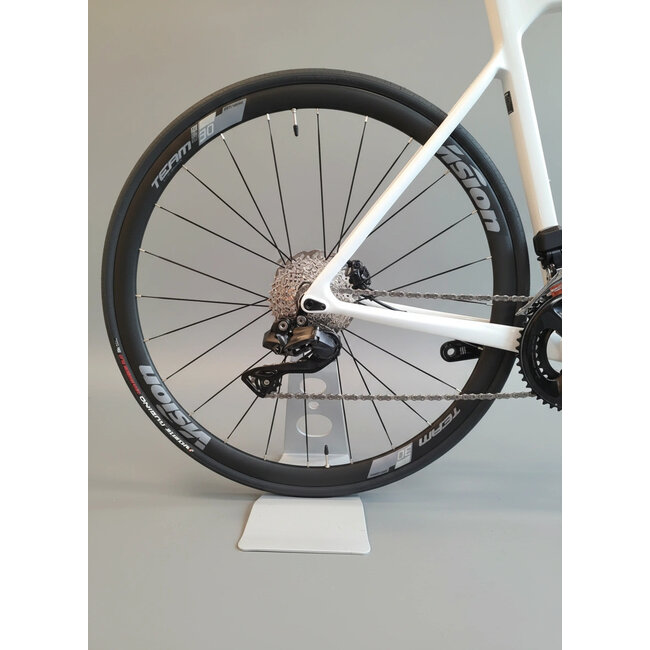

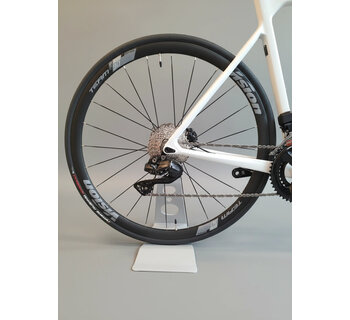

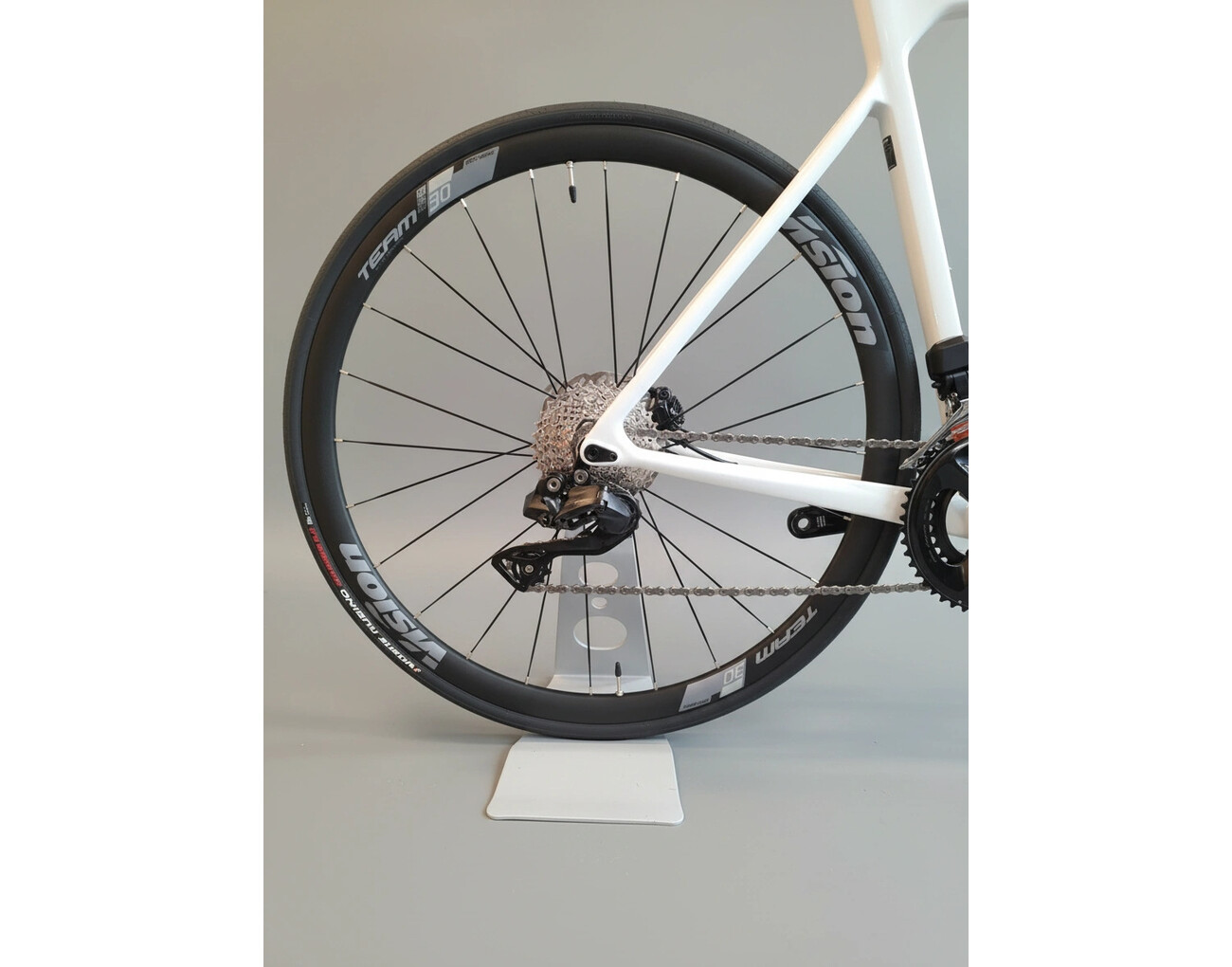

  2. Rear Derailleur

     Shimano, RD-R7150, 105 Di2 12-speed

  3. Front Derailleur

     Shimano 105 Di2, FD-R7150 12-speed

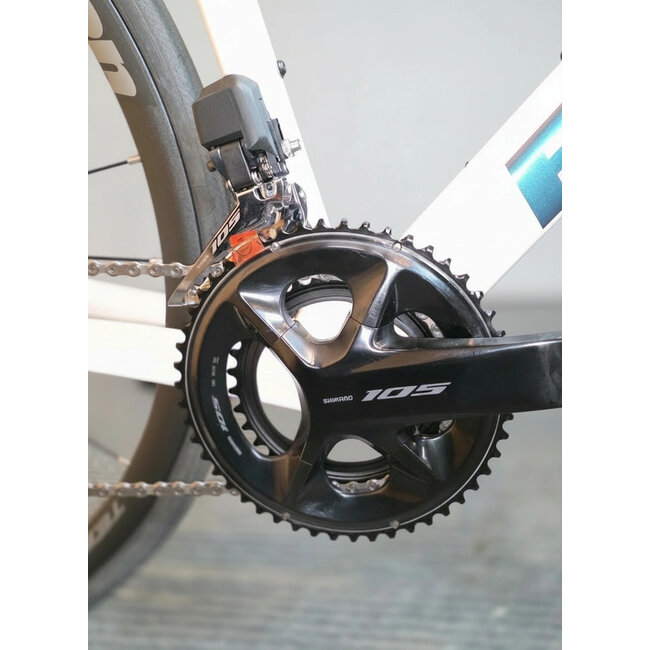

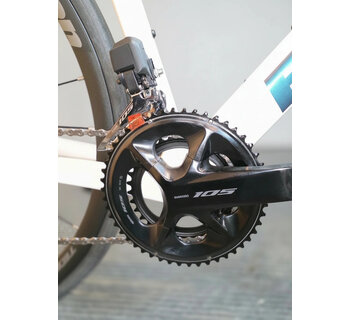

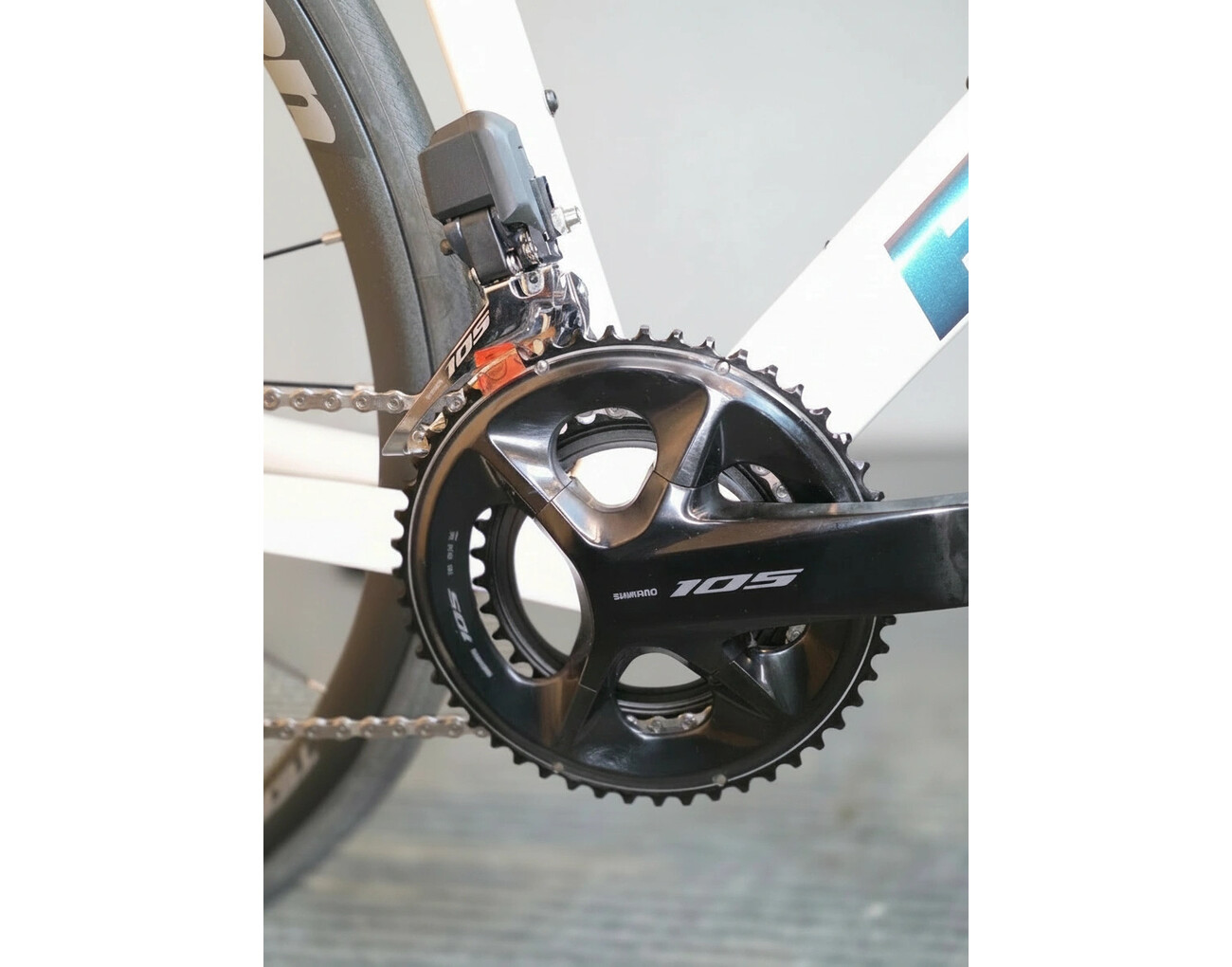

  4. Crankset

     Shimano 105 12sp, FC-R7100, for rear 12- speed, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm

  5. Bottom Bracket

     Shimano, SM-BB72-41B, press fit for road

  6. Chain

     Shimano 12sp, CN-M7100

• Brakes

  1. Brakes

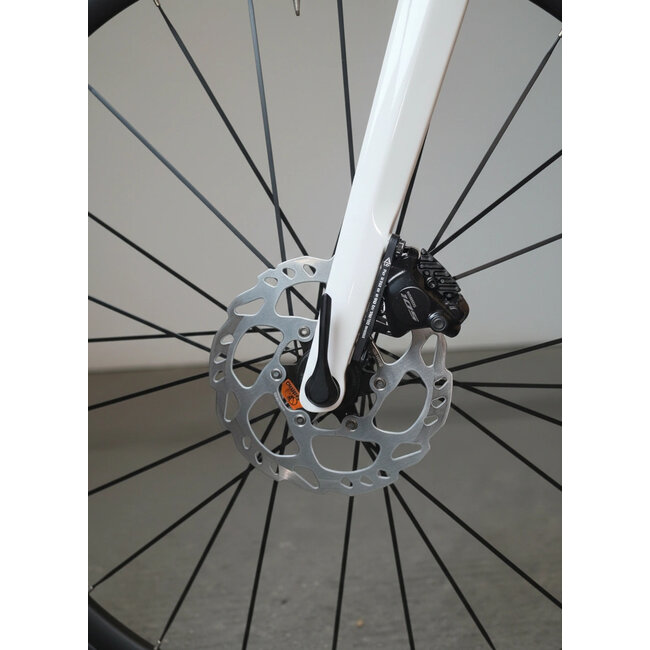

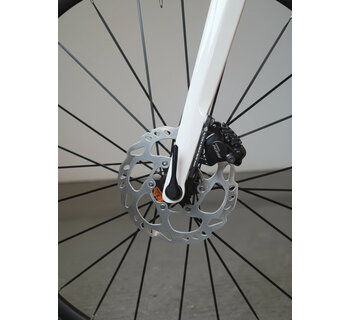

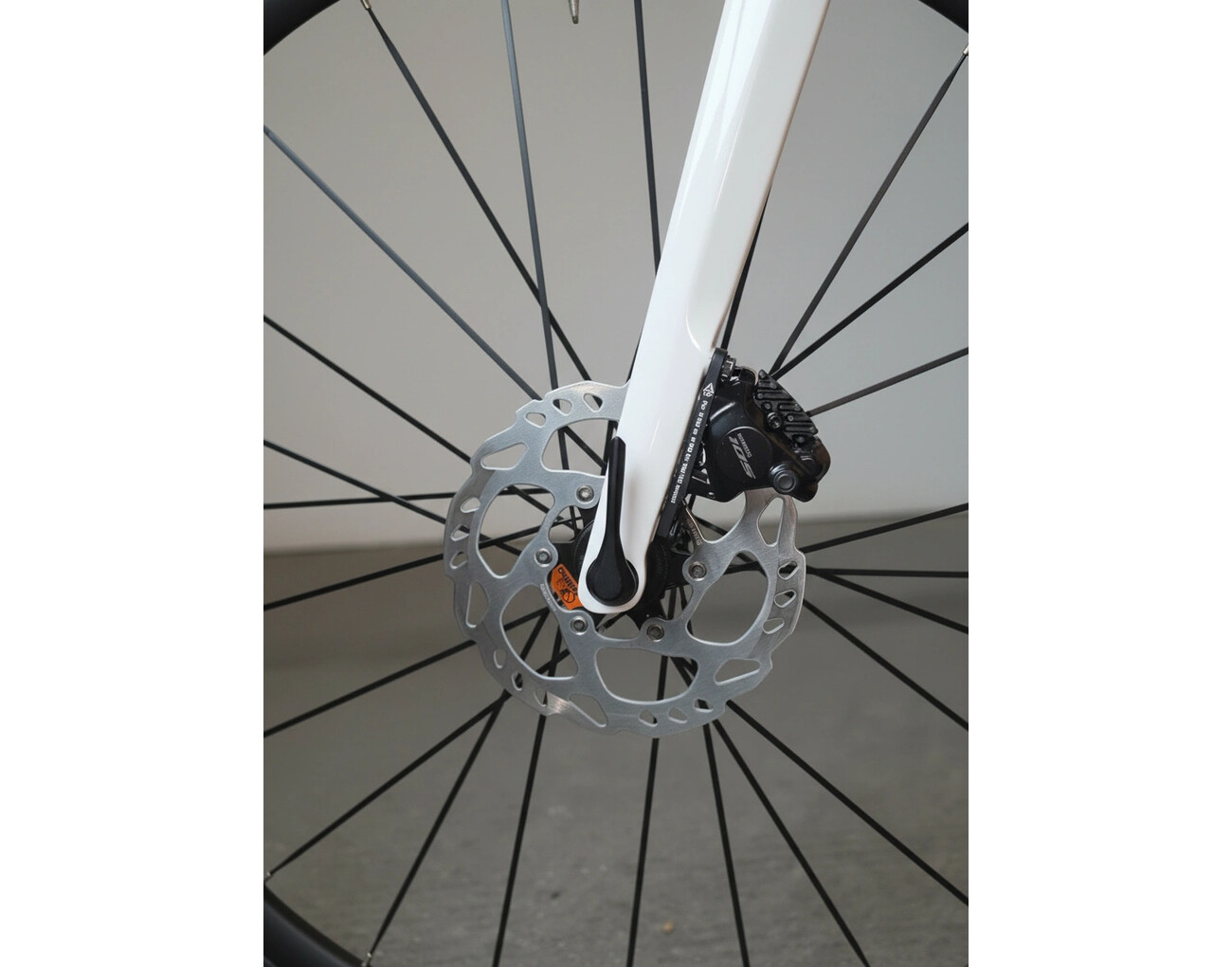

     Shimano, BR-R7170 Hydraulic disc brake, included in the shifter

  2. Rotor

     Shimano rotor for disc brake center lock, SM-RT70, 160mm

• Wheels

  1. Wheels

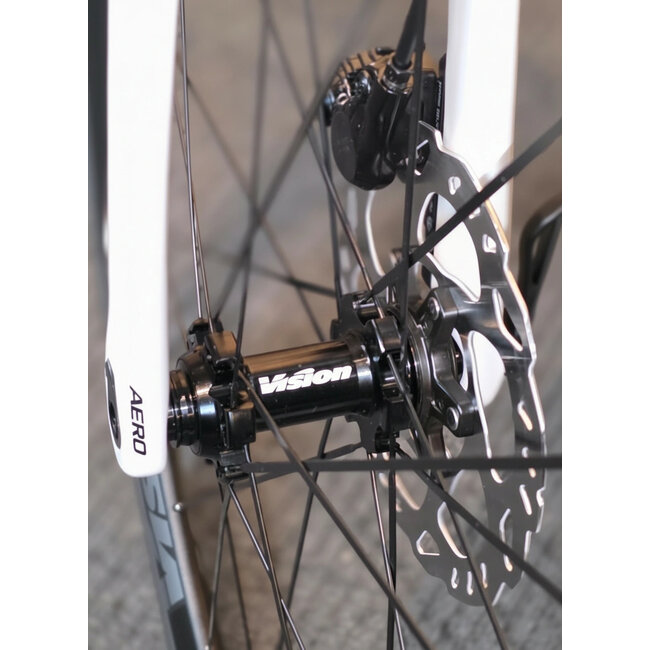

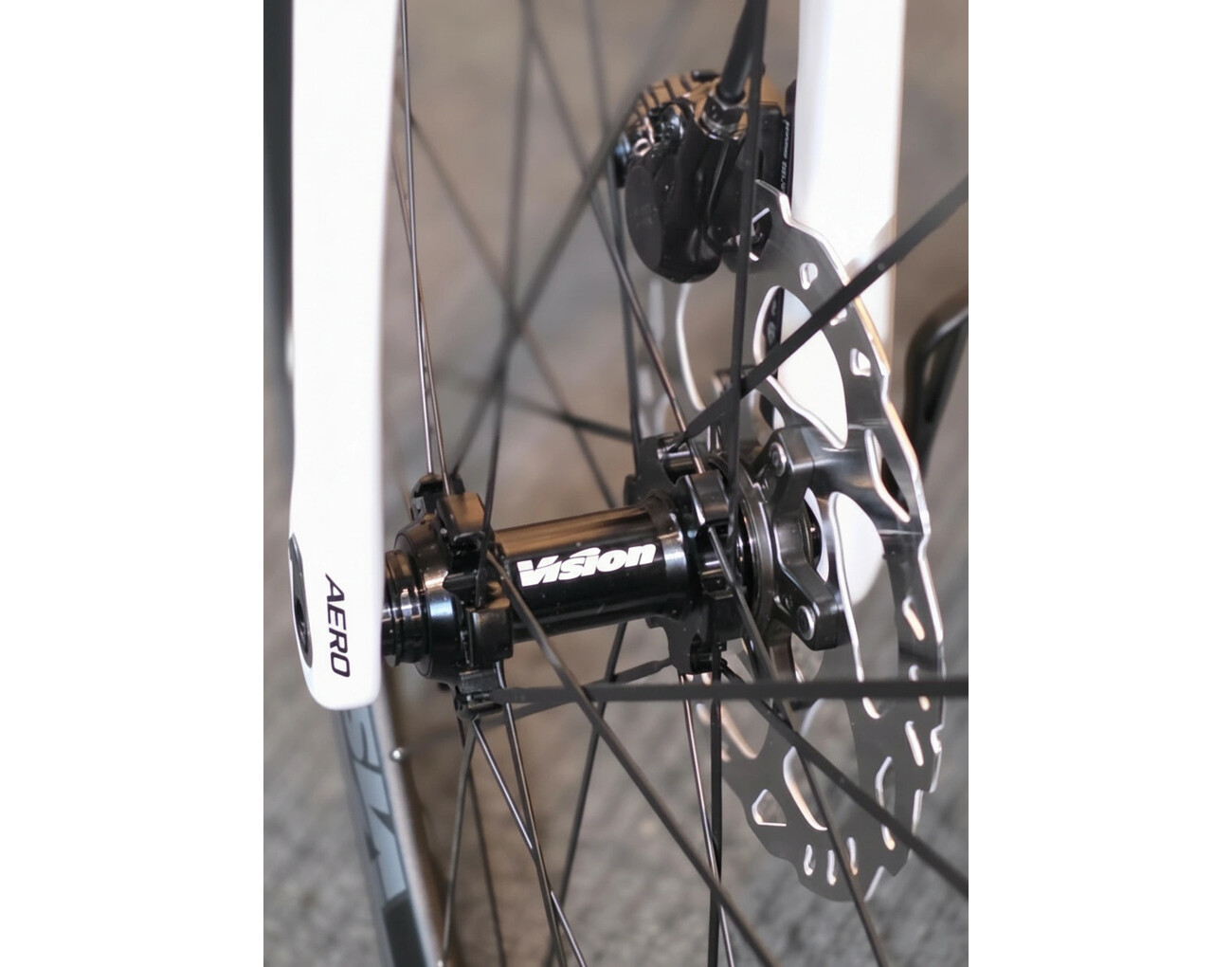

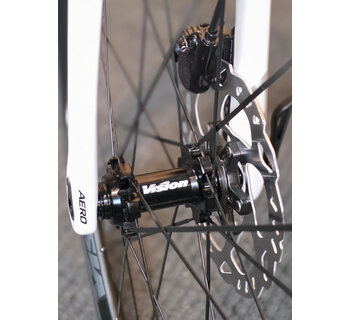

     Velomann alloy, disc brake, 30mm rim profile, hub team TC j-bend, spoke round 2mm black color, clincher 622x19C, w/rim tape, front HH12 - rear HH12/142

  2. Tire

     Vittoria Rubino IV G2.0 graphene, 700x25, 60TPI

• Cockpit

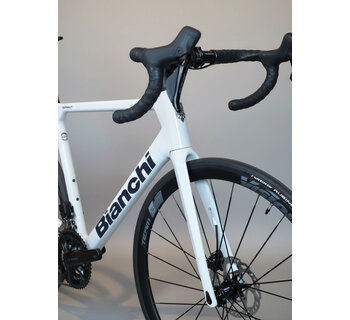

  1. Stem

     Velomann, Alloy 6061, raise - 7° Ext: 80mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm

  2. Handlebar

     Velomann Compact, alloy 6061, diam. 31,8mm, reach 80mm, drop 130mm Size: 400mm-44/53cm,420mm-55/59cm,440mm-61cm

  3. Grips / Extensions

     Bianchi cork, black

• Saddle

  1. Seatpost

     Velomann alloy 6061, 15mm offset, 27,2mm; Length: 300mm-44cm ; 350mm-47/61cm

  2. Saddle

     Velomann Seta
