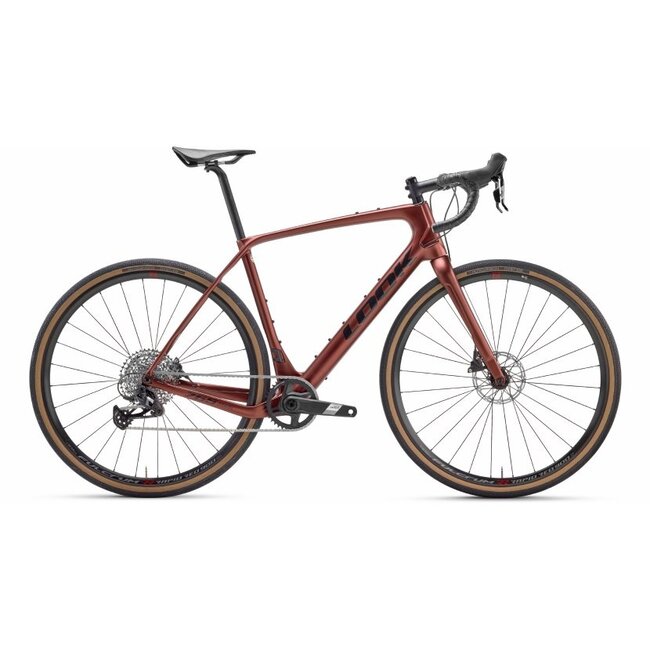

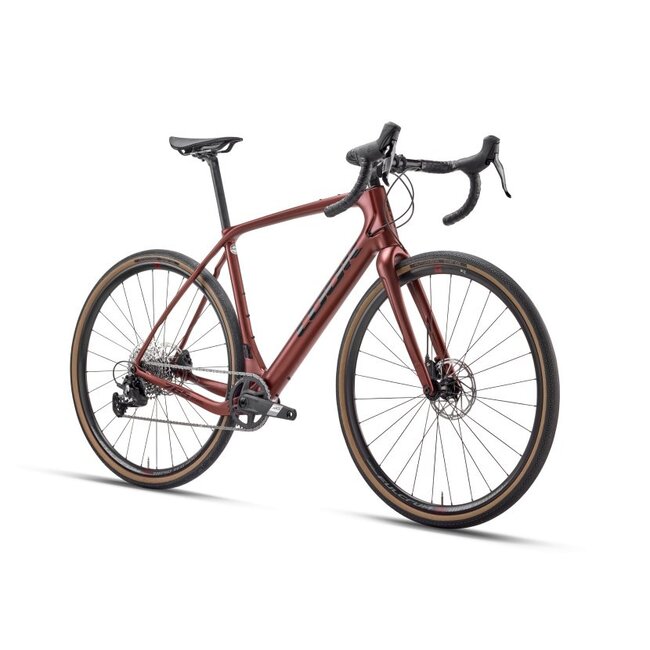

| Frame | LOOK 765 Gravel |
|---|---|

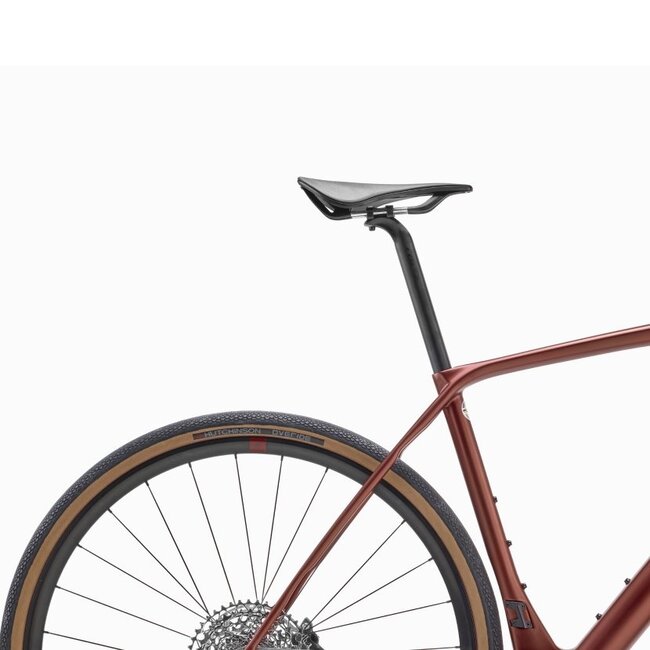

| Seatpost | LOOK LS3 Alloy 27.2 mm 350 mm |
| Stem | LOOK LS2 |

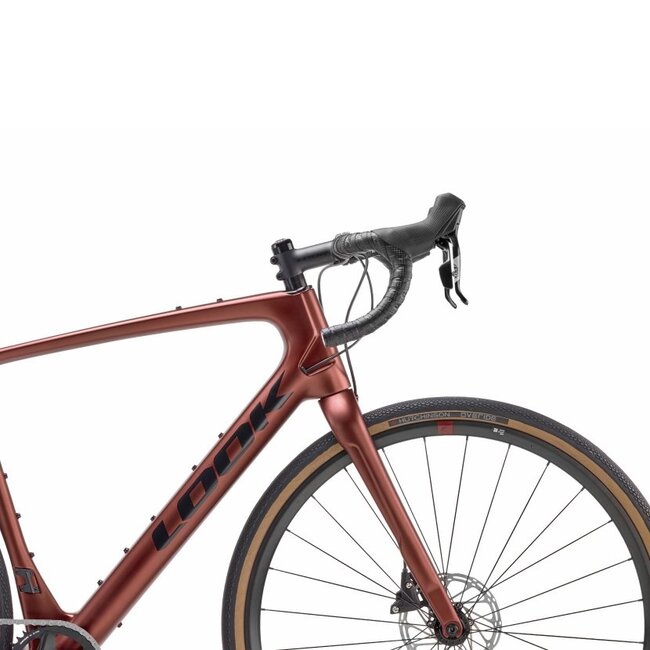

| Handlebar | LOOK LS2 Alloy Gravel 12° Flare |
| Wheels | FULCRUM Rapid Red 900 2WF C22 |
|---|---|
| Tires | HUTCHINSON Overide 700x38 Tan Tubetype |
| Thru axles | Speed Release Ready 142x12 R / 100x12 F P1.0 |
| Crankset | SRAM Apex 1x12 T38 |
|---|---|
| Chain | SRAM Apex 12 Speed |
| Bottom bracket | SRAM Dub BB 386 86,5 Road Wide |
| Cassette | SRAM Apex PG 1231 11x44 |
| Shifters | SRAM Apex 12 Speed |

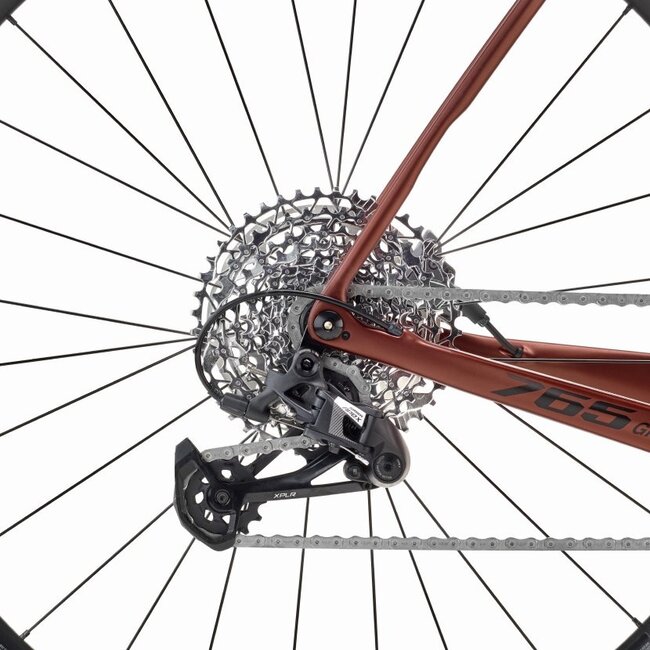

| Derailleurs | SRAM Apex EXPL 12 Speed |
| Rotors | SRAM Centerlock Centerline - F : 160 mm / R : 160 mm |
| Brakes | SRAM Apex Flat mount |
Wheels diameter : 682 mm
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 530 | 554 | 578 | 602 | 626 |
| Reach | 355 | 365 | 375 | 385 | 395 |
| I - Head tube (°) | 70.3 | 70.3 | 70.3 | 70.3 | 70.3 |
| J - Seat tube (°) | 74 | 74 | 73 | 73 | 73 |
| A - Seat tube | 450 | 472,7 | 500,3 | 525,4 | 550,5 |
| B - Top Tube horizontal | 507 | 524 | 552 | 569 | 586.5 |
| C - Front Center | 577 | 595.5 | 614 | 632.5 | 651 |
| D - Trail | 72 | 72 | 72 | 72 | 72 |
| F - Fork offset | 50 | 50 | 50 | 50 | 50 |
| G - Chainstays | 420 | 420 | 420 | 420 | 420 |
| K - Head tube | 111.5 | 137 | 162.5 | 188 | 213.5 |
| L - Fork | 395 | 395 | 395 | 395 | 395 |
| HAV | 70 | 70 | 70 | 70 | 70 |
| Standover | 745 | 765 | 793 | 816 | 843 |
