Tech specs

• Motor Unit

  1. Motor

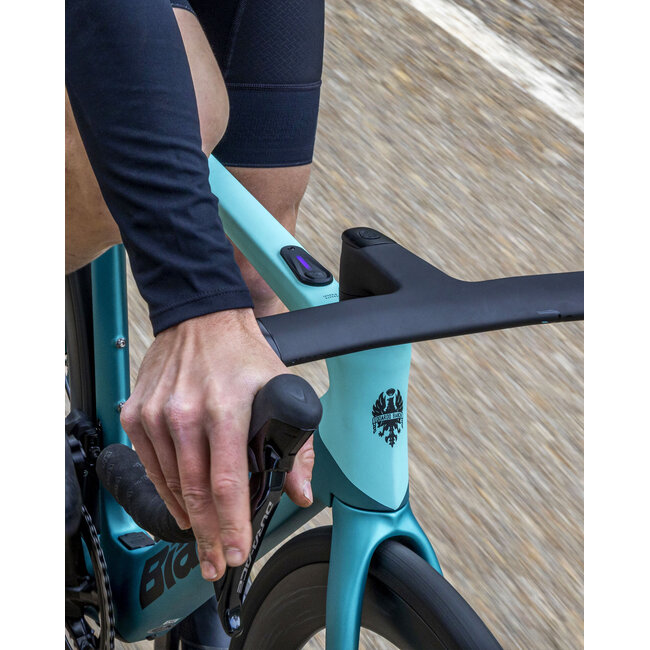

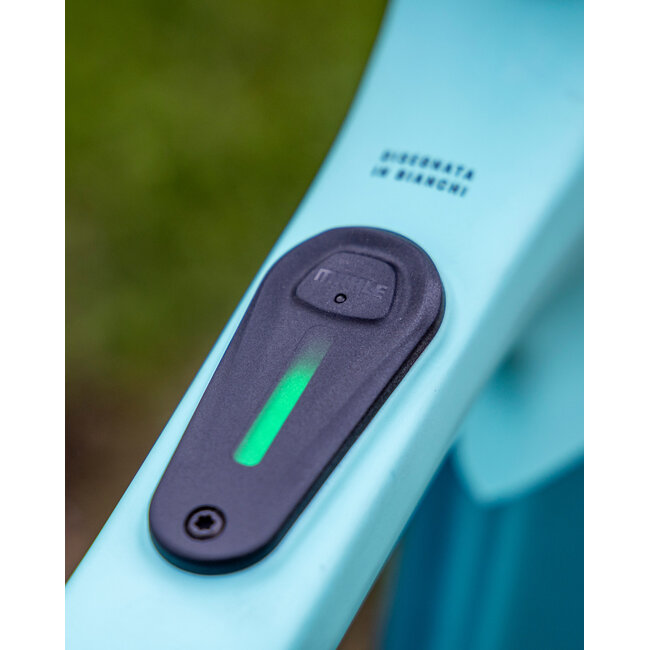

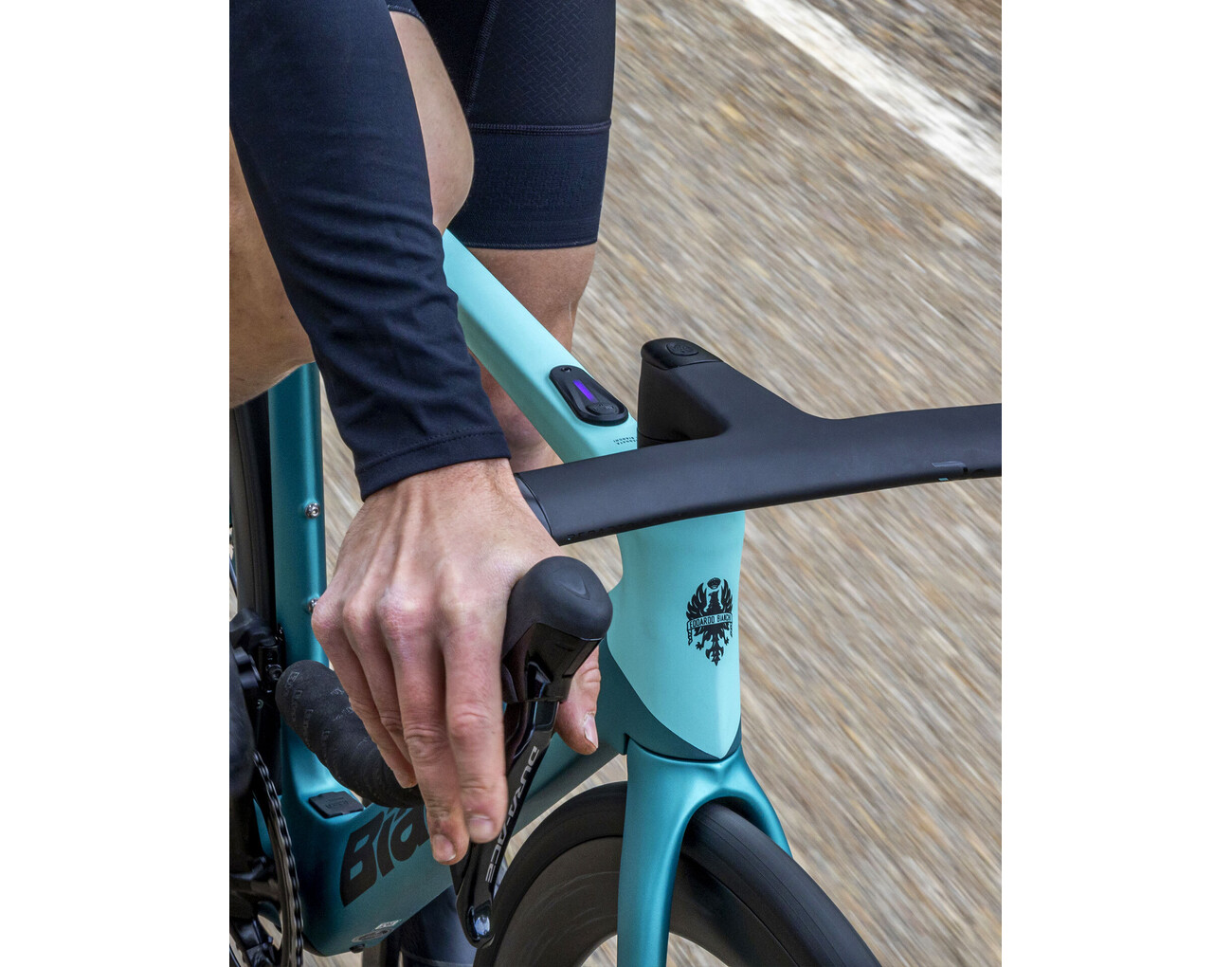

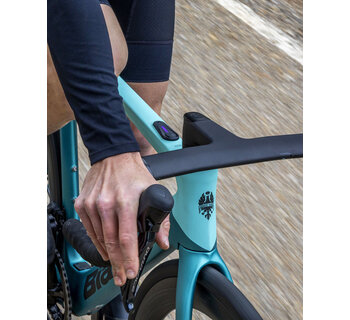

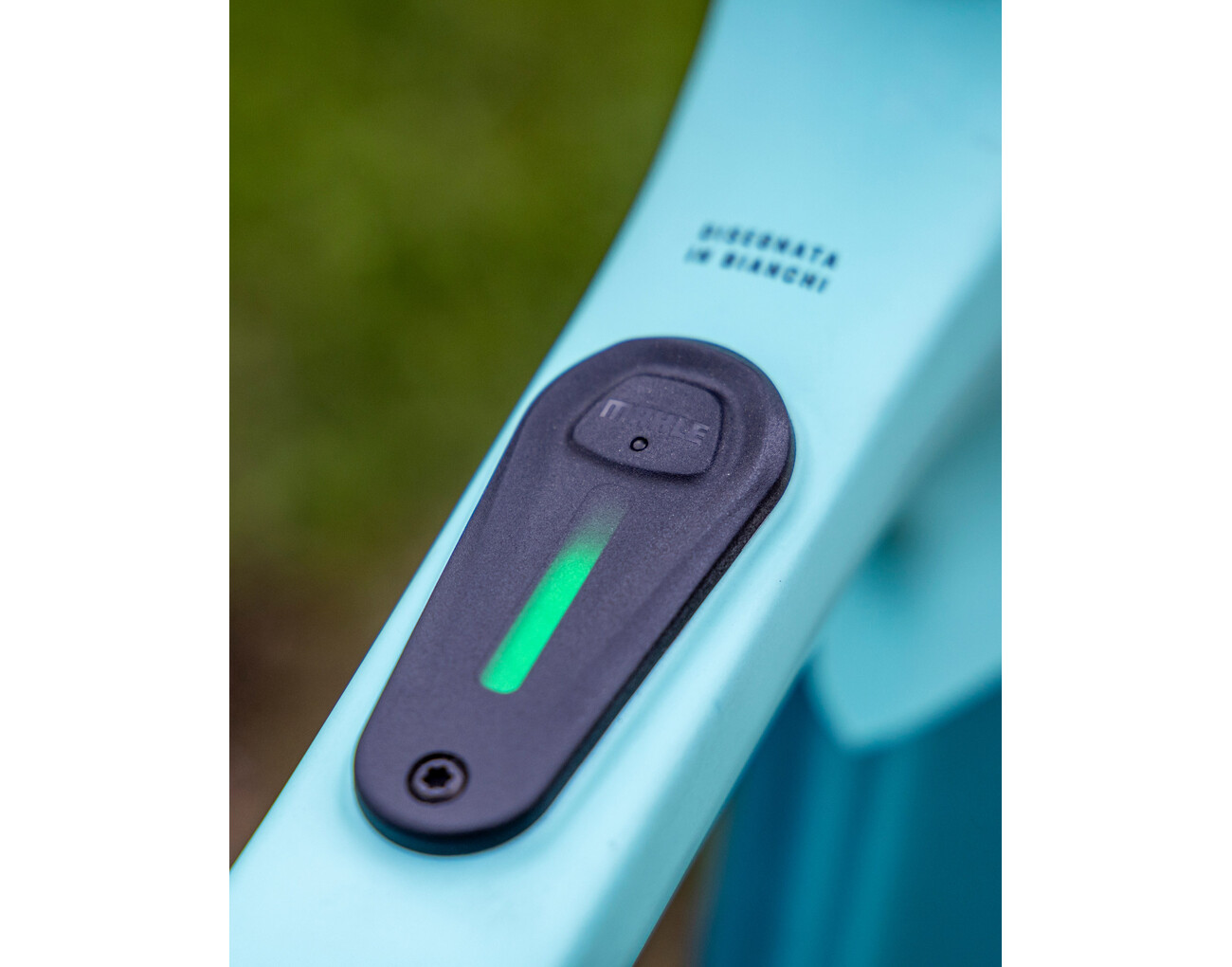

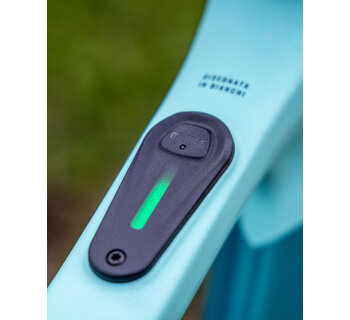

     Mahle X30 Drive unit, 40Nm, 250W iWoc ONE head unit

  2. Battery

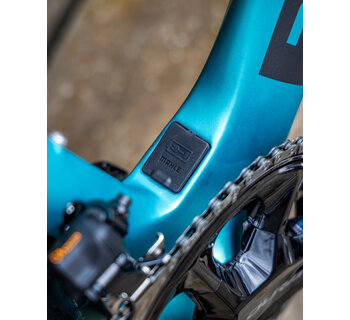

     Mahle 'iX250w Battery Pack

• Frameset

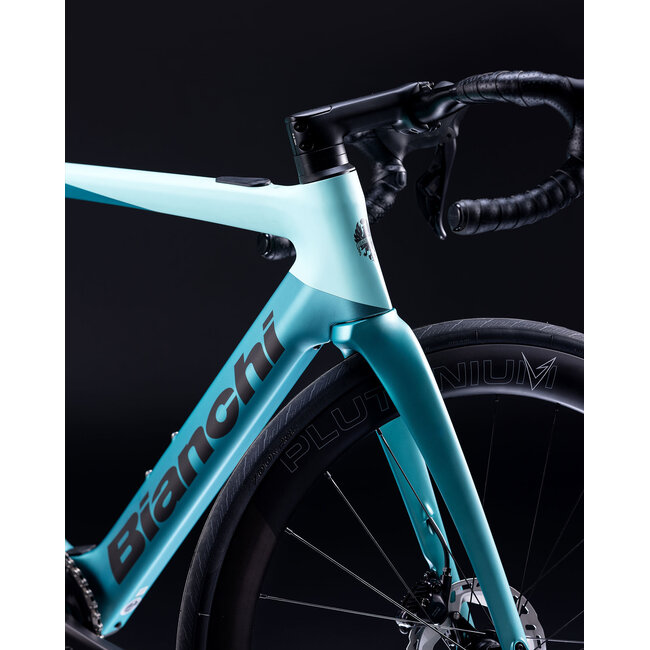

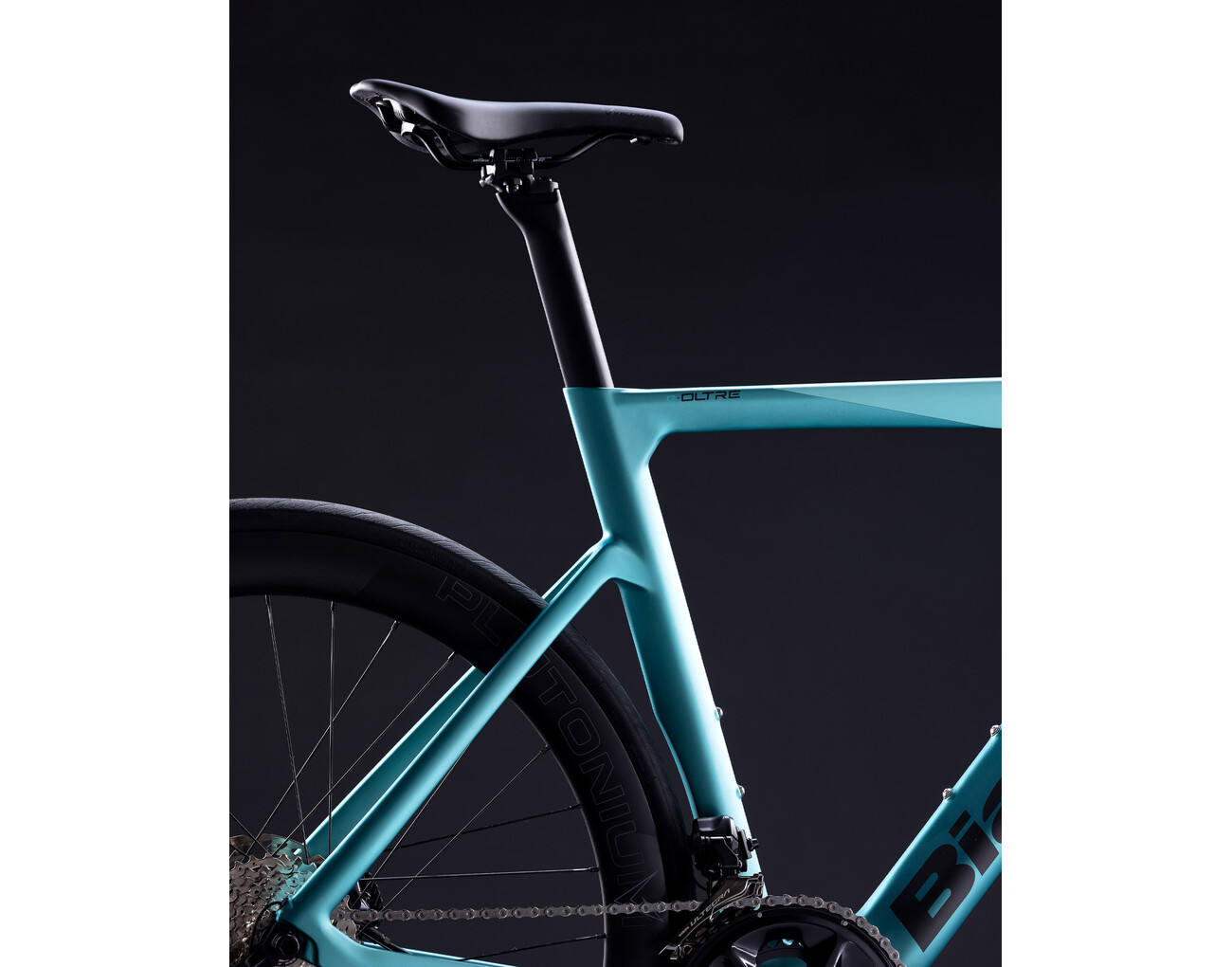

  1. Frame

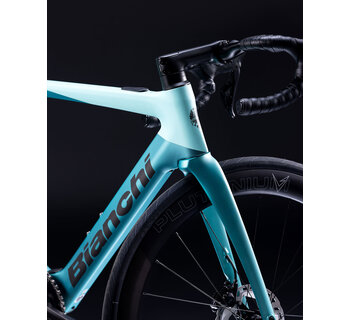

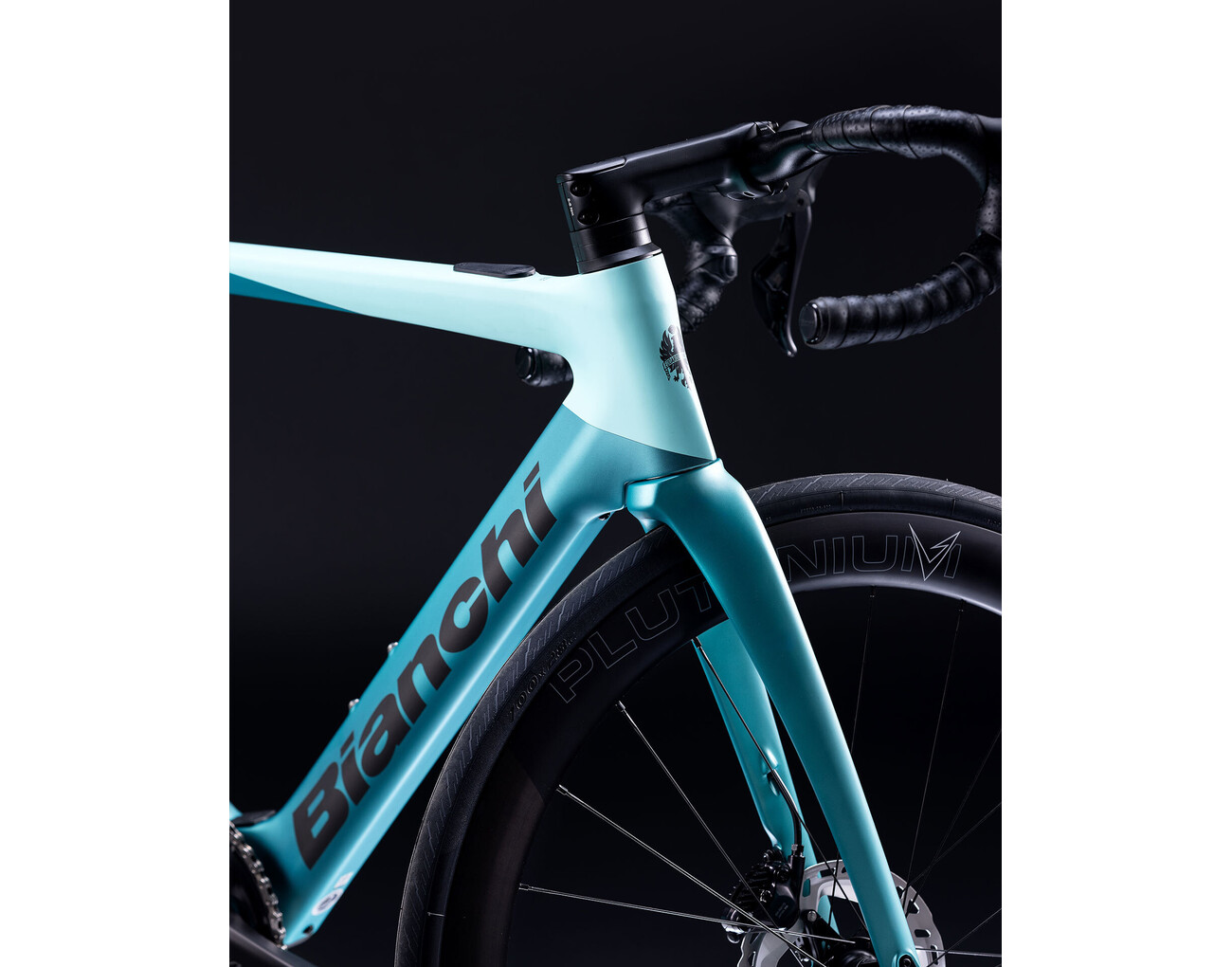

     Oltre e-road carbon, fully internal cable routing, mechanic and electronic groupsets, BB pressfit, disc brake flat mount, OLD 135mm sizes: 47, 50, 53, 55, 57, 59, 61

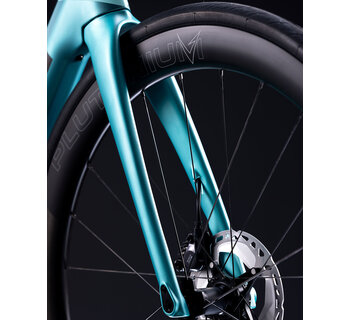

  2. Fork

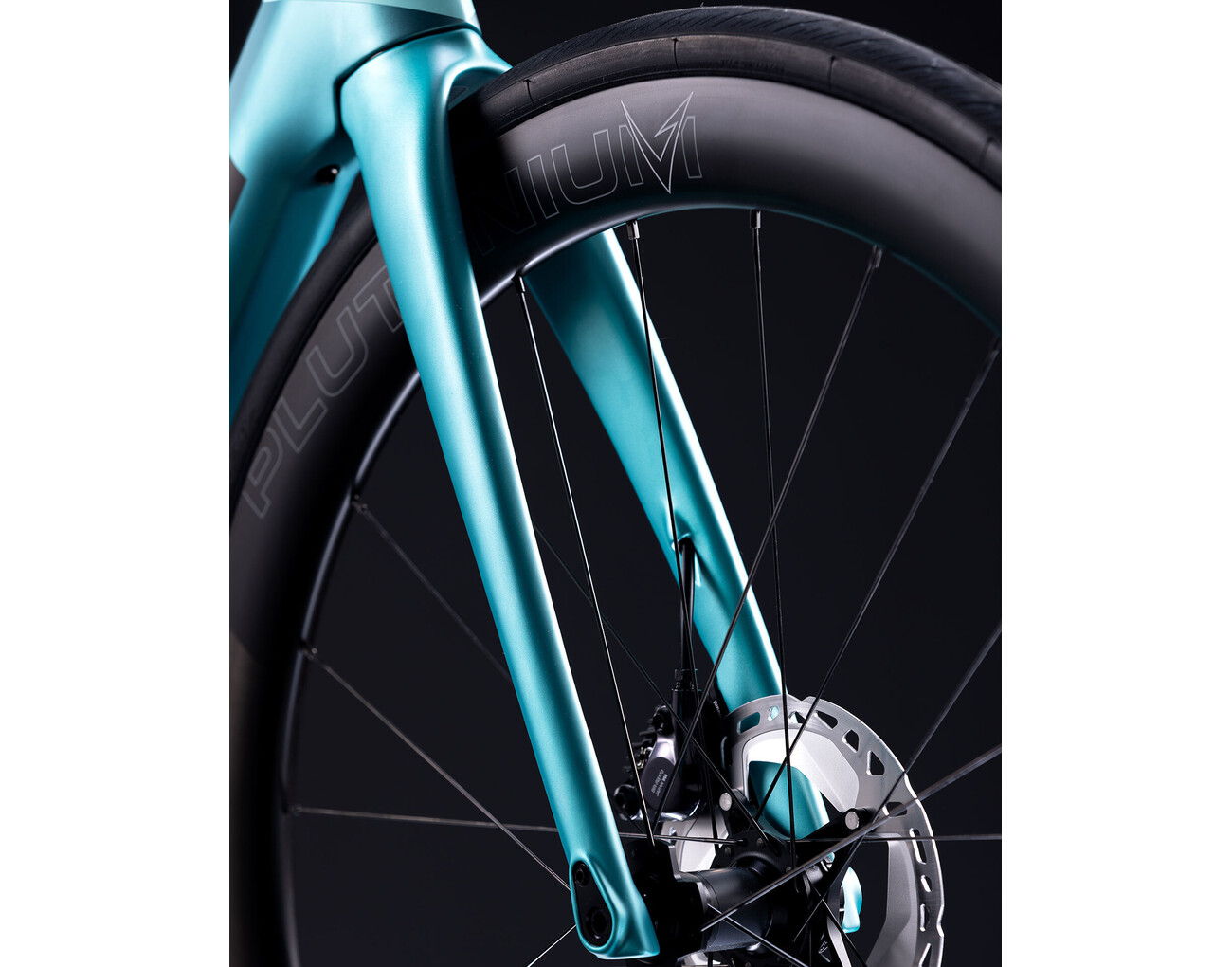

     Full carbon aero road ICR, integrated head, disc brake flat mount, thru axle 12x100

  3. Headset

     Acros / FSA, internal cable routing ICR

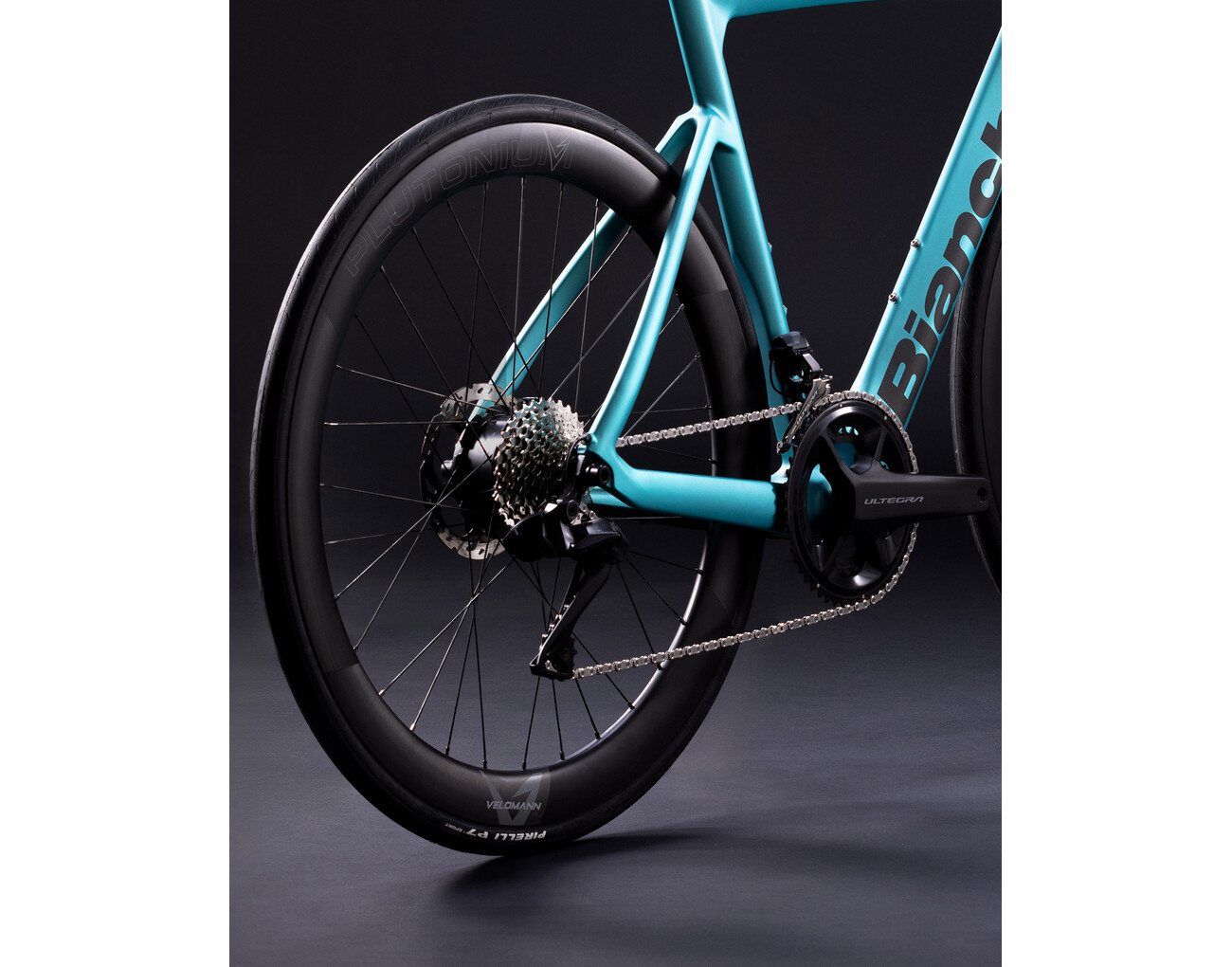

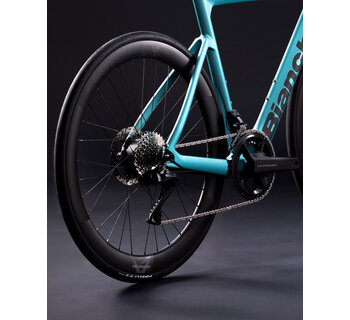

• Drivetrain

  1. Shifters

     Shimano 105 12 speed

  2. Rear Derailleur

     Shimano 105 12 speed RD-R7100

  3. Front Derailleur

     Shimano 105 12 speed FD-R7100

  4. Crankset

     Shimano 105 12 speed, FC-R7100, hollowtech 2, 50x34T Crank Length: 47, 50, 53 - 170mm 55, 57, 59 - 172.5mm 61 - 175mm

  5. Bottom Bracket

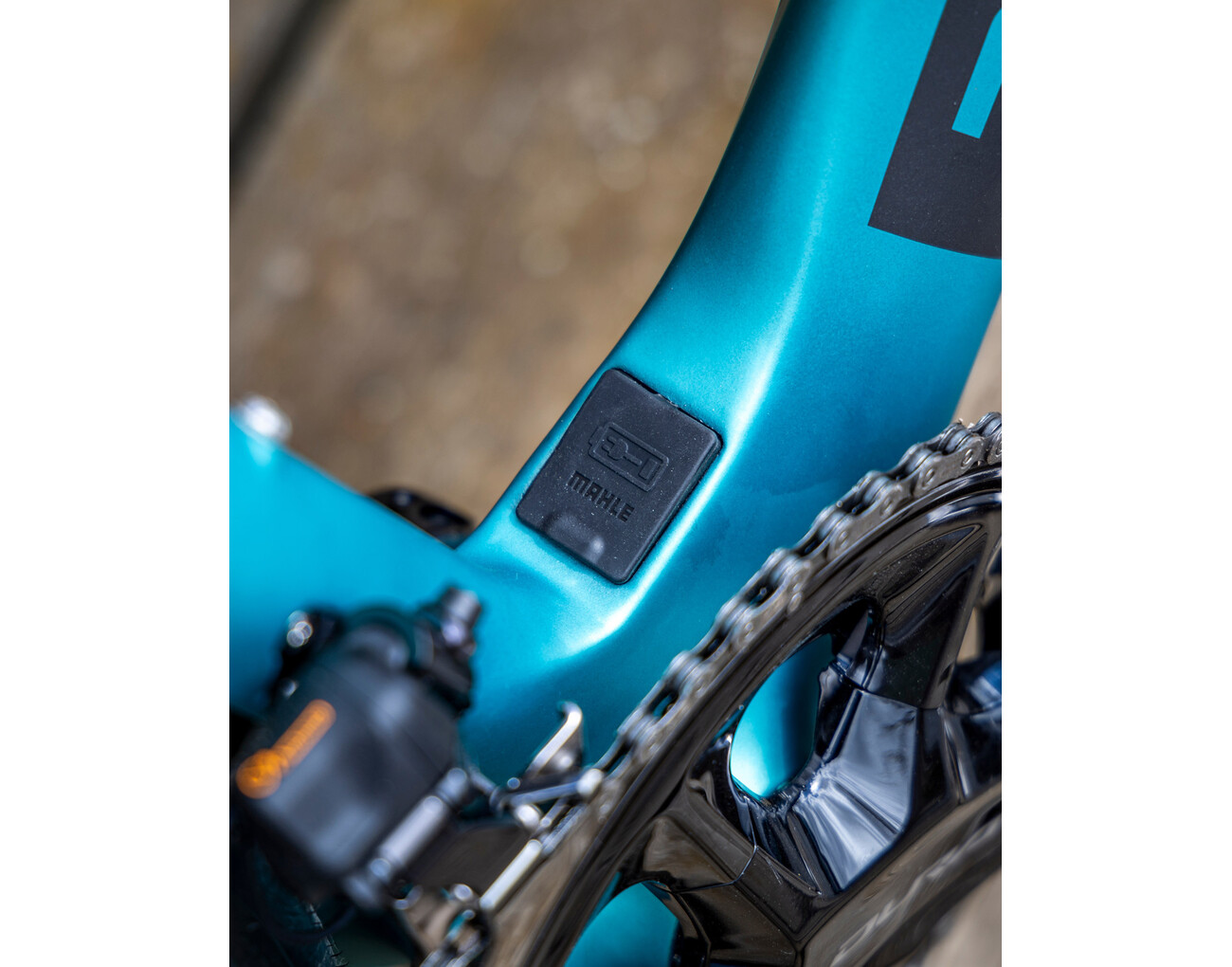

     Mahle torque sensor BB

  6. Chain

     Shimano 105 12 speed

  7. Cassette

     Shimano 105 12 speed, 11-34 11-12-13-14-15-17-19-21-24-27-30-34T

• Brakes

  1. Brakes

     included in the shifter

  2. Rotor

     Shimano RT86 6bolt,160mm rear Shimano MT800, centerlock 160mm front

• Wheels

  1. Wheels

     Velomann Plutonium, carbon, 21-622, profile 50mm, 24hole front, 32 hole rear, tubeless ready

  2. Tire

     Vittoria Rubino V 28-622 TLR, G2.0, 100TPI

• Cockpit

  1. Stem

     Velomann Viper, Alloy 6061, raise - 7°, semi-integrated cable routing Ext:90mm-47cm, 100mm-50~53cm, 110mm-55~57cm, 120mm-59~61cm

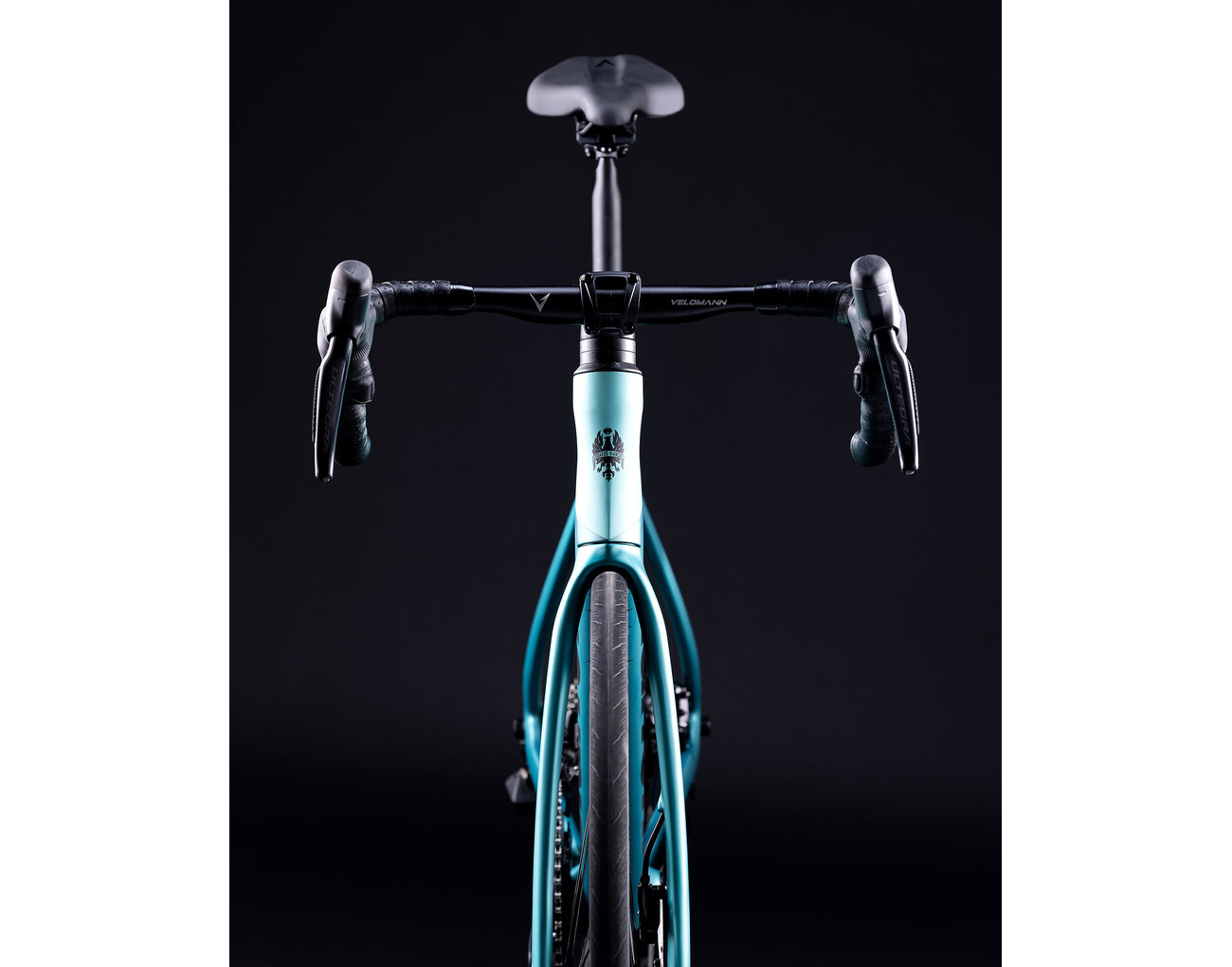

  2. Handlebar

     Velomann Aero Compact, alloy 6061 diam. 31.8mm, reach 74mm, drop 116mm Size: 400mm-47~53cm,420mm-55~59cm,440mm-61cm

  3. Grips / Extensions

     Bianchi Hexagon tape, 2.5mm thickness, black

• Saddle

  1. Seatpost Clamp

     included in the frame

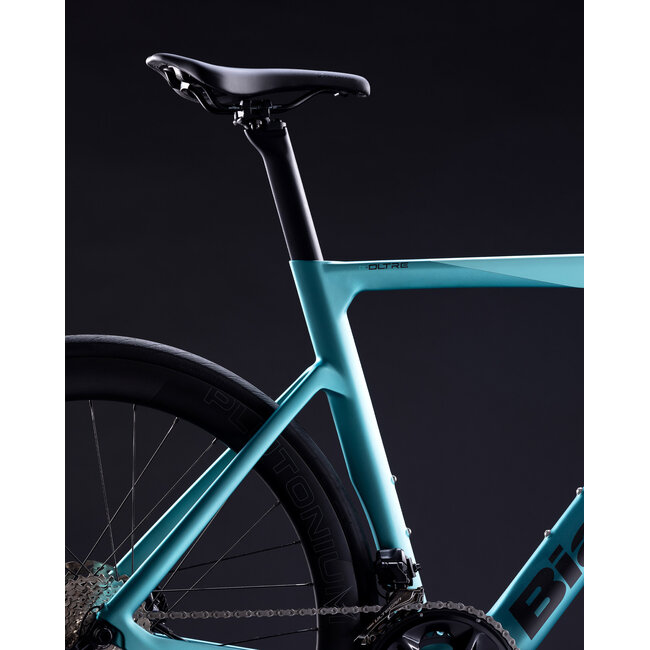

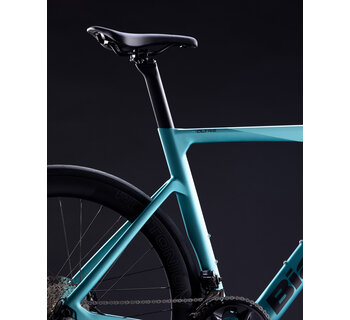

  2. Seatpost

     Full carbon aero shape, special Clamp type with alloy head adjustable and reversible +/- 35mm; length: 300mm =47>50cm; 350mm=53>61

  3. Saddle

     Velomann Gnd Full-fit, carbon steel rail, 262x145
